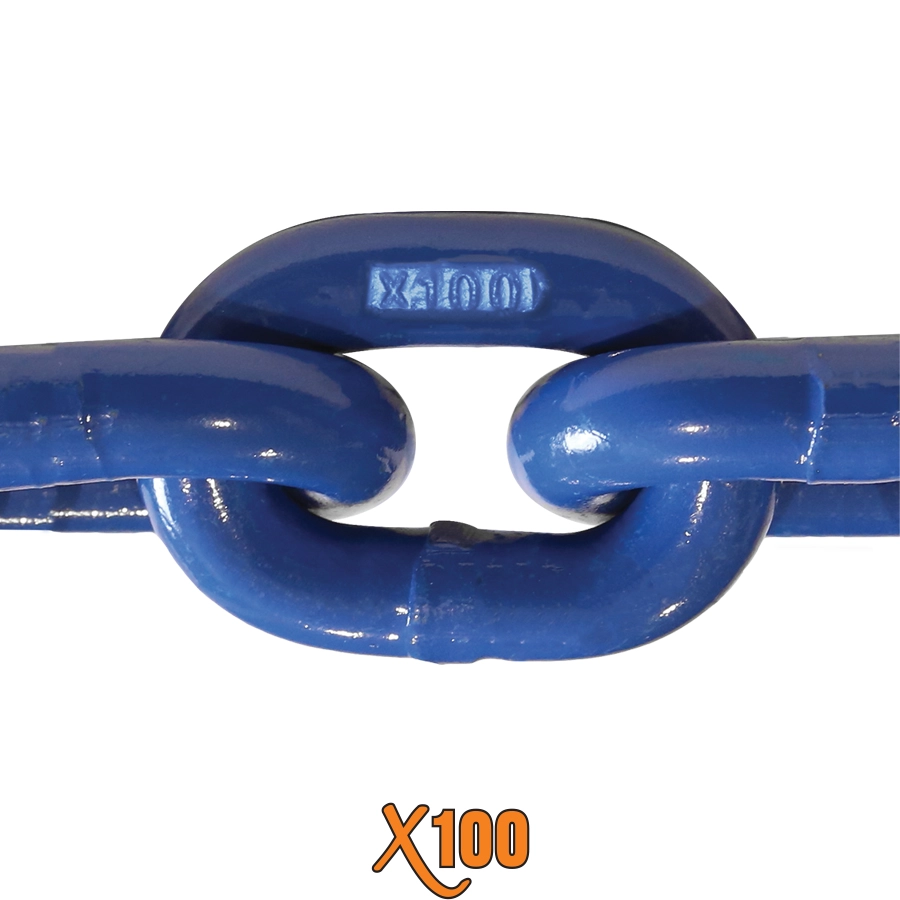

X100 Grade 100 Chain
- Every link has been Proof Tested to Two Times (2X) the Working Load Limit in accordance with the National Association of Chain Manufacturers
- X100® Grade 100 Chain is suitable for overhead lifting
- Grade 100 Chain Sling Assemblies are compliant with ASME B30.9
- Permanently embossed with X100 and a traceable lot code

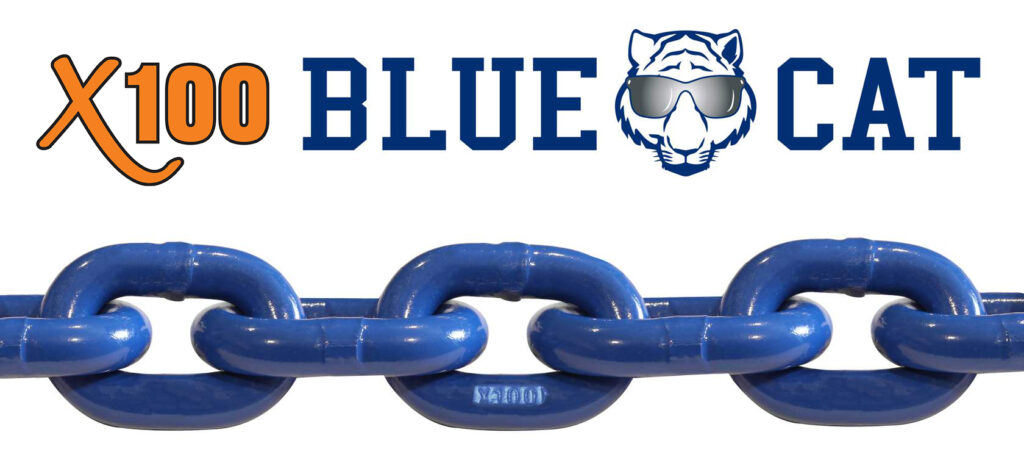

- Blue Cataphoresis finish
- X100 Grade 100 chain is suitable to be used in fabricated Lifting Chain Sling Assemblies
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | MATERIAL DIAMETER | INSIDE WIDTH | INSIDE LENGTH | WORKING LOAD LIMIT (LBS.) | FEET/DRUM | WEIGHT/FOOT (LBS.) |
|---|---|---|---|---|---|---|---|
| 9/32″ | X100281 | 0.283″ | .420″ | 0.85″ | 4,300 | 800′ | 0.74 |
| 5/16″ | X100312 | 0.315″ | .500″ | 1.04″ | 5,700 | 550′ | 0.94 |
| 3/8″ | X100375 | 0.394″ | .575″ | 1.26″ | 8,800 | 400′ | 1.48 |
| 1/2″ | X100500 | 0.512″ | .768″ | 1.64″ | 15,000 | 200′ | 2.55 |
| 5/8″ | X100625 | 0.630″ | .930″ | 2.00″ | 22,600 | 150′ | 3.83 |
| 3/4″ | X100750 | 0.750″ | 1.15″ | 2.50″ | 35,300 | 100′ | 6.21 |
X100 Grade 100 Alloy Chain is made in accordance with the standards set forth by the National Association of Chain Manufacturers.
Safety factor: 4:1.
| Temperature | Grade of Chain | ||||
|---|---|---|---|---|---|
| Grade 80 | Grade 100 | ||||
| (°F) | (°C) | Reduction of Working Load Limit WHILE AT Temperature | Permanent Reduction of Working Load Limit AFTER EXPOSURE to Temperature | Reduction of Working Load Limit WHILE AT Temperature | Permanent Reduction of Working Load Limit AFTER EXPLOSURE to Temperature |
| Below 400 | Below 204 | None | None | None | None |
| 400 | 204 | 10% | None | 15% | None |
| 500 | 260 | 15% | None | 25% | 5% |
| 600 | 316 | 20% | 5% | 30% | 15% |
| 700 | 371 | 30% | 10% | 40% | 20% |
| 800 | 427 | 40% | 15% | 50% | 25% |
| 900 | 482 | 50% | 20% | 60% | 30% |
| 1000 | 538 | 60% | 25% | 70% | 35% |
| Over 1000 | Over 538 | OSHA 1910. 184 requires all slings exposed to temperatures over 1000 °F to be removed from service | |||
