X100® X-Latch Kits for Crane Blocks
- Forged Heavy Duty Design
- Two Position Capability as a Locked Latch or Spring Latch
- High Quality Black Powder Coated Finish
- High Quality Zinc Plating On Pins and Hardware
- Stainless Steel Heavy Duty Spring Fatigue Tested to 10,000 Cycles
- Pins and Latches Ductility Tested For Safety

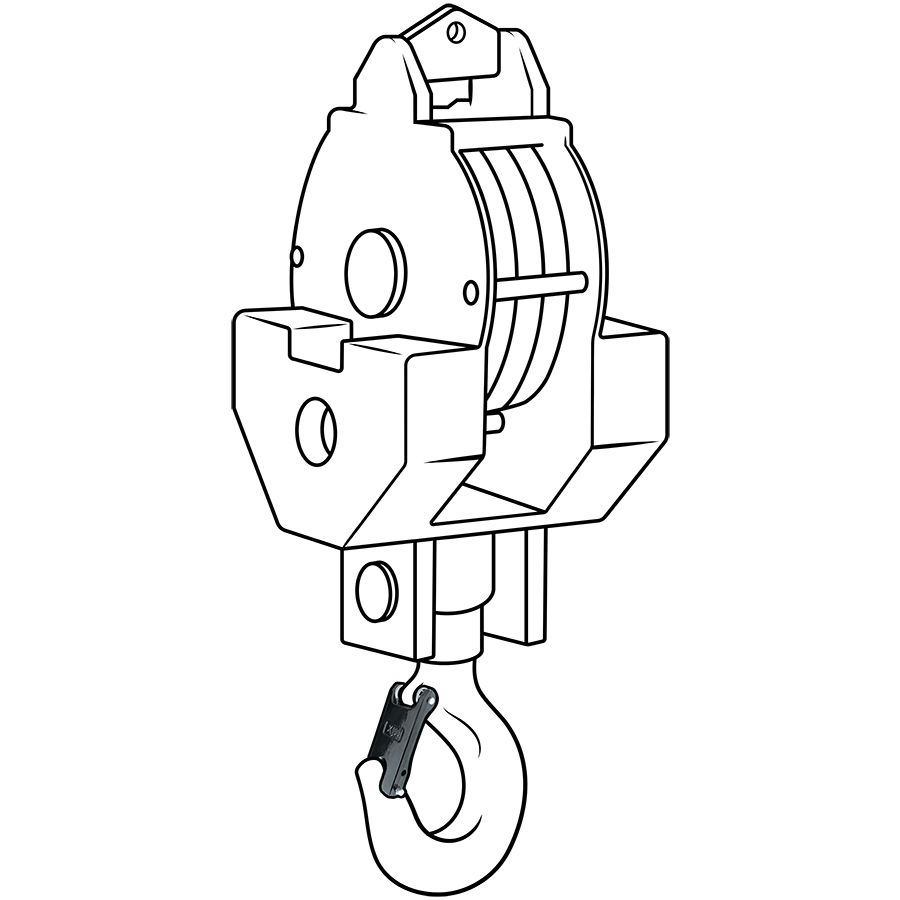

- Compatible as a Replacement Latch For Many Popular Crane Blocks
- Sold In Box Quantities or by the Piece

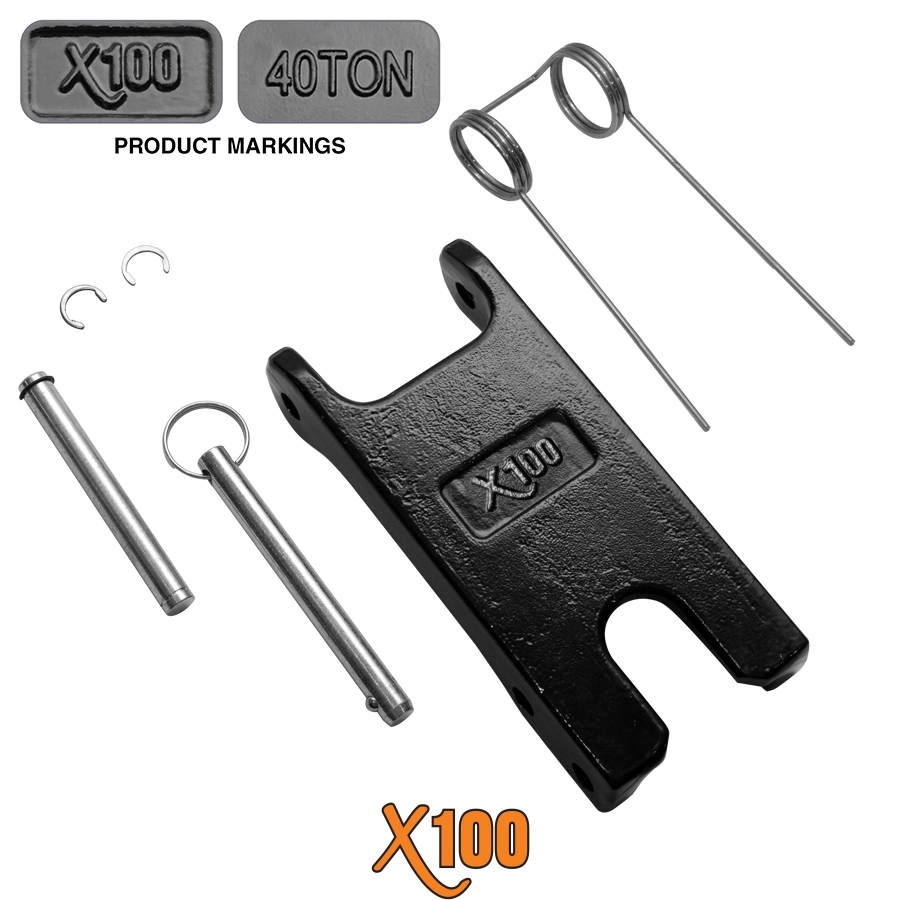

- Every Latch Sold with Extra Spring and C-Style Retaining Clips/Nuts
- X-Latch Repair Kits Available
- Markings: X100 Branding & Size
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | SIZE (TON) | WEIGHT/PIECE (LBS) | QTY/BOX | REPAIR KIT STOCK NUMBER |
|---|---|---|---|---|
| XLAT5T | 5 | 0.18 | 100 |
XLAT5TRK |
| XLAT7T | 7 | 0.26 | 100 |
XLAT7TRK |
| XLAT15T | 15 | 0.46 | 50 |
XLAT15TRK |
| XLAT22-25T | 22-25 | 1.01 | 25 |
XLAT22-25TRK |
| XLAT30T | 30 | 1.86 | 15 |
XLAT30TRK |
| XLAT40T | 40 | 2.29 | 10 |
XLAT40TRK |
| XLAT55-70T | 55-70 | 5.6 | 6 |
XLAT55-70TRK |
| XLAT80-100T | 80-100 | 8.2 | 4 |
XLAT80-100TRK |

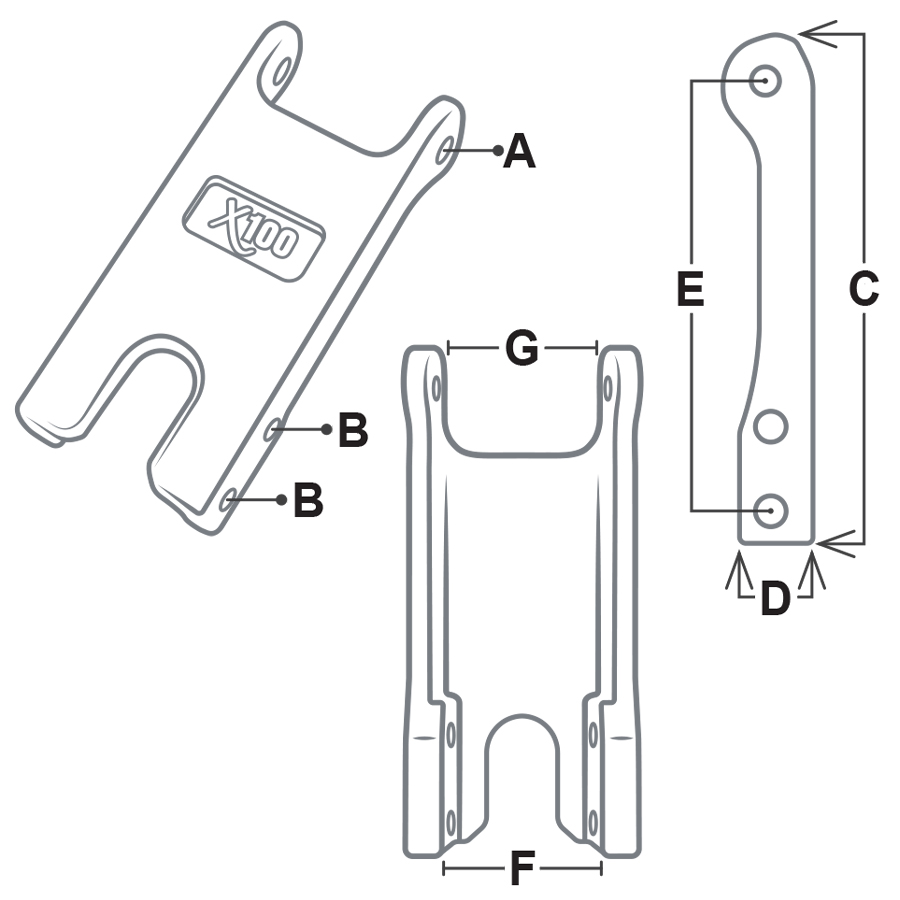

| STOCK NUMBER | SIZE (TON) | DIMENSIONS (IN) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A dia. | B dia. | C | D | E | F | G | LOCK PIN (L x W) | SPRING PIN (L x W) | ||
| XLAT5T |
5 |
0.17 |
0.25 |
2.44 |
1.02 |
1.93 |
0.38 |
0.59 |
1.44 x 0.246 |
1.357 x 0.150 |
| XLAT7T |
7 |
0.20 |
0.25 |
3.02 |
1.02 |
2.50 |
0.38 |
0.59 |
1.44 x 0.246 |
1.368 x 0.194 |
| XLAT15T |
15 |
0.25 |
0.25 |
3.78 |
1.21 |
3.10 |
0.48 |
0.64 |
1.734 x 0.248 |
1.470 x 0.246 |
| XLAT22-25T |
22-25 |
0.38 |
0.38 |
5.17 |
1.53 |
4.29 |
0.65 |
0.88 |
2.21 x 0.373 |
1.793 x 0.373 |
| XLAT30T |
30 |
0.51 |
0.51 |
6.38 |
1.69 |
5.21 |
0.62 |
0.91 |
2.687 x 0.497 |
1.979 x 0.498 |
| XLAT40T |
40 |
0.38 |
0.38 |
6.56 |
2.94 |
5.55 |
0.98 |
2.19 |
3.789 x 0.374 |
3.25 x 0.372 |
| XLAT55-70T |
55-70 |
0.51 |
0.51 |
7.88 |
4.35 |
6.75 |
1.43 |
3.31 |
5.356 x 0.498 |
4.870 x 0.498 |
| XLAT80-100T |
80-100 |
0.76 |
0.75 |
9.50 |
4.39 |
7.87 |
1.54 |
3.31 |
5.834 x 0.764 |
4.871 x 0.749 |
REPAIR KITS: For Latches 5 & 7 Ton
REPAIR KITS: For Latches 15 Ton or Greater
| STOCK NUMBER | REPAIR KIT STOCK NUMBER |
|---|---|
| XLAT5T |
XLAT5TRK |
| XLAT7T |
XLAT7TRK |
| XLAT15T |
XLAT15TRK |
| XLAT22-25T |
XLAT22-25TRK |
| XLAT30T |
XLAT30TRK |
| XLAT40T |
XLAT40TRK |
| XLAT55-70T |
XLAT55-70TRK |
| XLAT80-100T |
XLAT80-100TRK |
