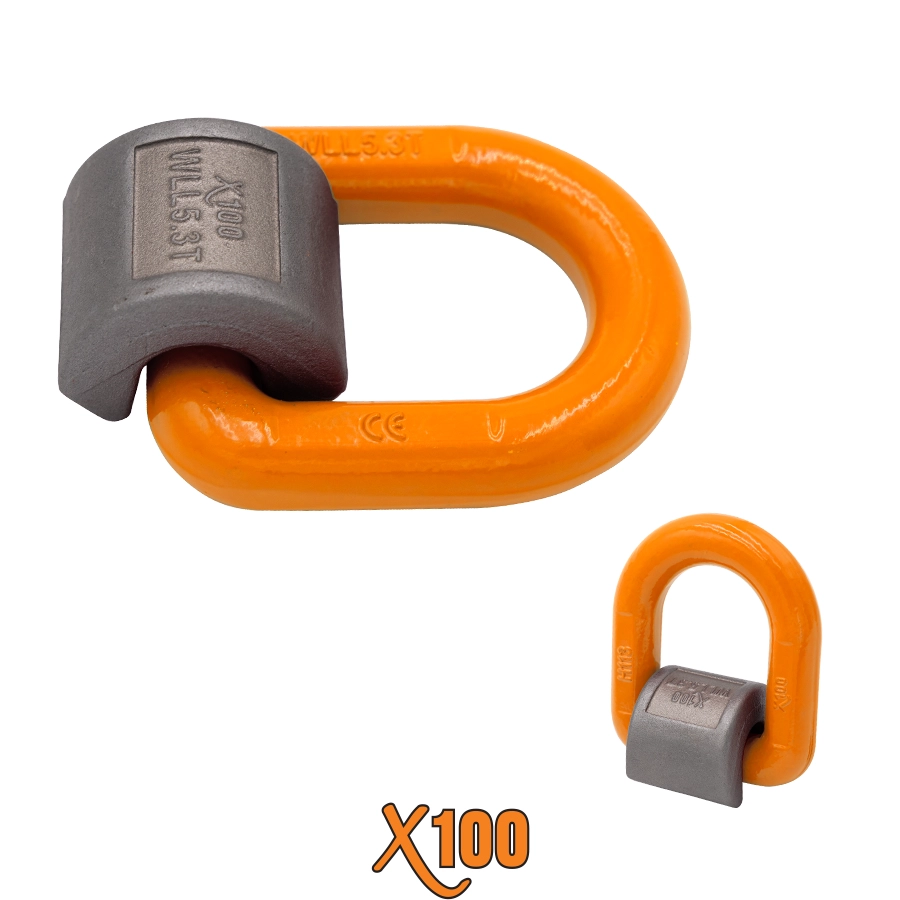

X100® Weld-On Lifting Points
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Use Weld-On Pivoting Link Only With Ferrous Metal (Steel)
- Loads May Disengage From Link If Proper Welding, Assembly, & Lifting Procedures Are Not Used
- Spring Loaded Pivoting Link For Easy Rigging
- Always Inspect Weld-On Lifting Point For Damage In the Weld or the Pivoting Link. Evidence of Wear, Cracks, Elongation, Etc., Is Grounds for Removal From Service
- Each Lifting Point Packed with Instructions, Warnings, & Cautions
- Ring Stands For Easy Attachment
- Ultimate Load Is 4 Times the Working Load Limit
- Do Not Side Load
- Base is Beveled for Ease of Welding
- Suitable For Overhead Lifting If Welded by a Certified Welder. Maximum Working Load Limit is Only Achieved When Welding is Performed by a Qualified Welder Using a Qualified Procedure In Accordance with American Welding Society.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (TON) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) |
|---|---|---|---|
| 1 | XWLP1T | 2,000 | 0.9 |
| 2 | XWLP2T | 4,000 | 1.05 |
| 3 | XWLP3T | 6,000 | 1.55 |
| 5 | XWLP5T | 10,000 | 2.6 |
| 8 | XWLP8T | 16,000 | 4.0 |
| 15 | XWLP15T | 30,000 | 12.5 |
| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XWLP1T | 1.61 | 3.09 | 0.51 | 1.46 | 1.38 |
| XWLP2T | 1.65 | 3.46 | 0.55 | 1.57 | 1.46 |
| XWLP3T | 1.77 | 3.70 | 0.67 | 1.67 | 1.57 |
| XWLP5T | 2.40 | 4.65 | 0.87 | 2.17 | 2.05 |
| XWLP8T | 2.78 | 5.55 | 1.04 | 2.75 | 2.24 |
| XWLP15T | 3.82 | 7.40 | 1.34 | 3.54 | 3.03 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
