X100® Weld-On Bucket Hooks
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated
- Forged Latch
- 100% Mag-Particle Crack Detection
- Base is Beveled for Ease of Welding
- Maximum Working Load Limit Is Only Achieved When Welding Is Performed By A Qualified Welder Using A Qualified Procedure In Accordance With American Welding Society.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (TON) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) | REPLACEMENT LATCH KIT |
|---|---|---|---|---|
| 1 | XBH1T | 2,000 | 1.7 | XLKBH1T |
| 2 | XBH2T | 4,000 | 1.9 | XLKBH2T |
| 3 | XBH3T | 6,000 | 2.7 | XLKBH3T |
| 5 | XBH5T | 10,000 | 5.5 | XLKBH5T |
| 8 | XBH8T | 16,000 | 7.25 | XLKBH8T |
| 10 | XBH10T | 20,000 | 11.45 | XLKBH10T |

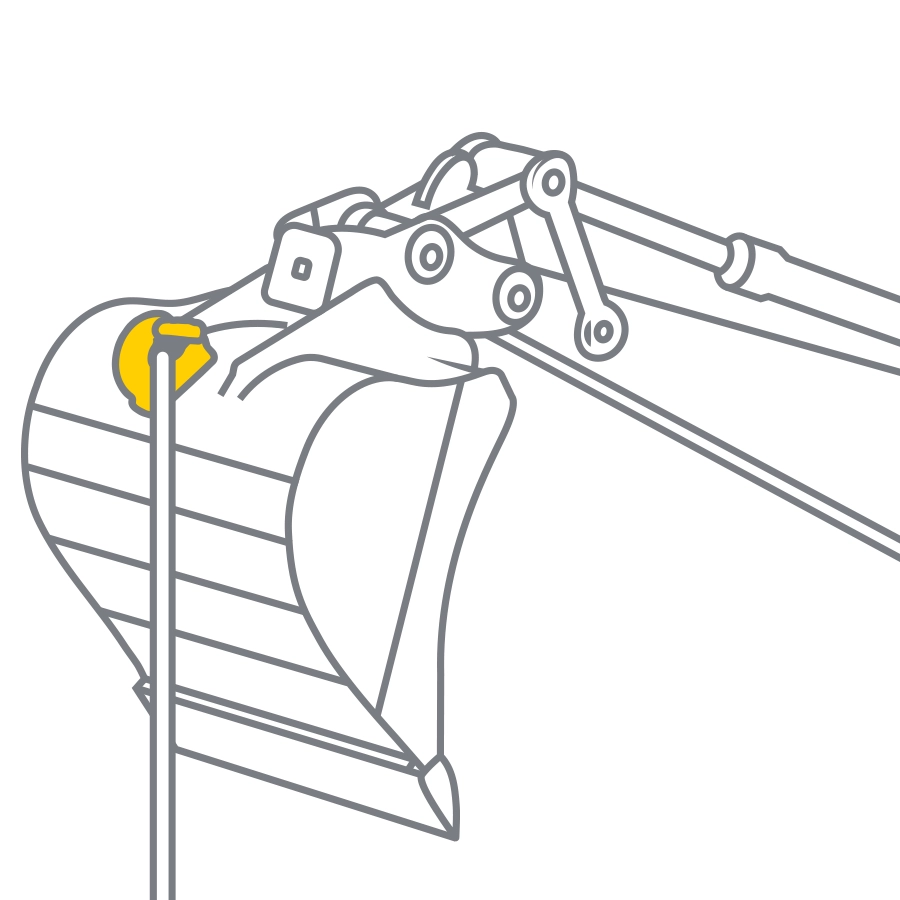

X100 Weld-On Bucket Hooks are suitable for overhead lifting.
| STOCK NUMBER | DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XBH1T | 3.20 | 2.37 | 0.85 | 3.54 | 0.92 | 1.01 | 3.86 |
| XBH2T | 3.62 | 2.64 | 1.00 | 4.19 | 0.92 | 1.35 | 4.40 |
| XBH3T | 4.17 | 2.89 | 1.13 | 4.45 | 1.25 | 1.42 | 5.08 |
| XBH5T | 5.24 | 3.70 | 1.48 | 6.17 | 1.73 | 1.72 | 6.87 |
| XBH8T | 5.37 | 3.70 | 1.41 | 6.31 | 2.01 | 2.00 | 6.97 |
| XBH10T | 6.62 | 5.50 | 1.95 | 8.00 | 2.13 | 2.09 | 8.50 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
