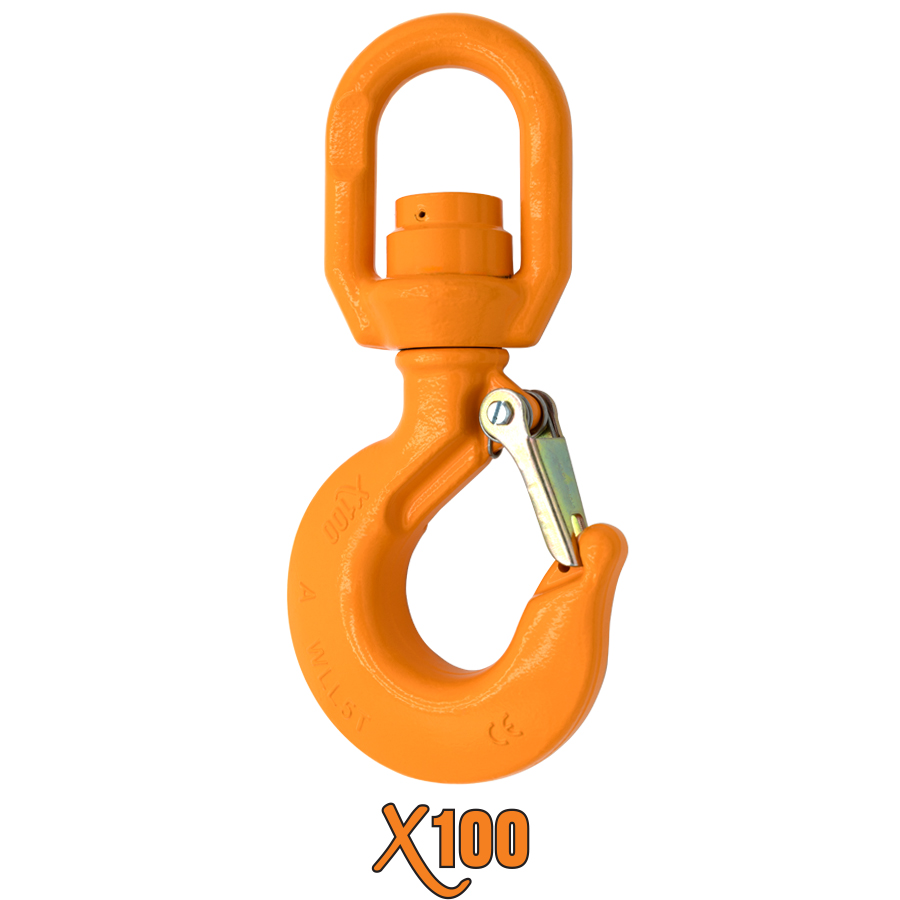

X100® Swivel Eye Hoist Hooks with Bearing
DESIGNED & SUITABLE FOR OVERHEAD LIFTING

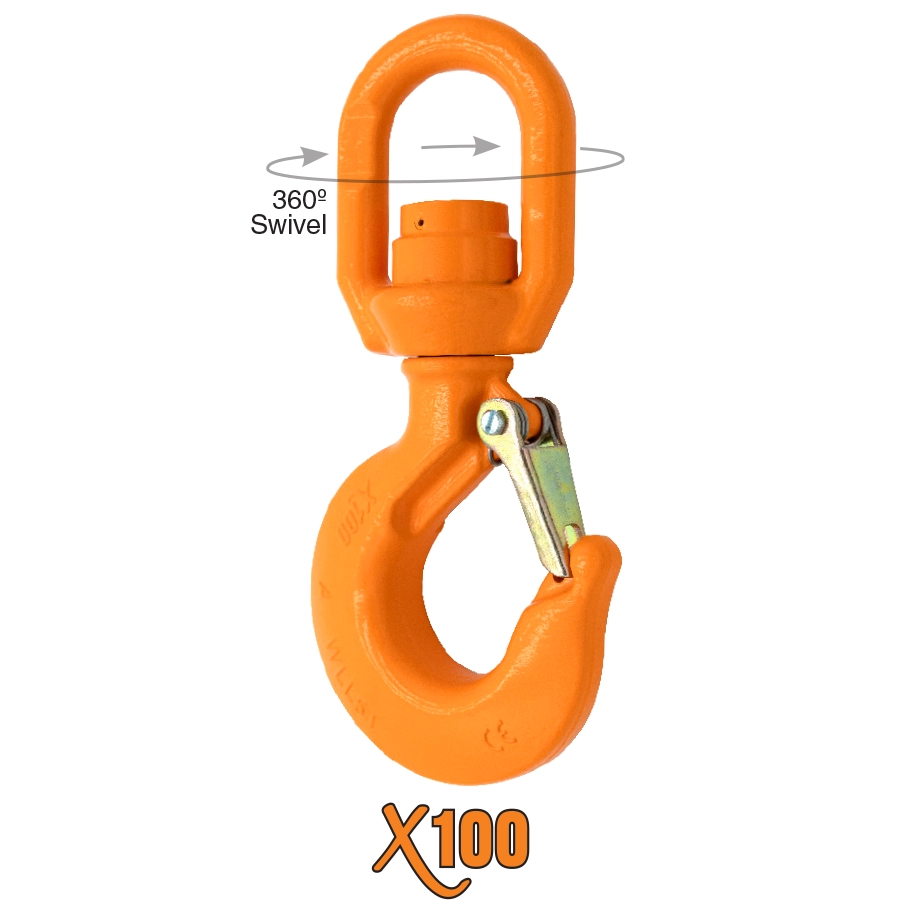

- Swivels Under Load
- Designed & Suitable for Overhead Lifting
- Notched Tip & Latch
- Heavy Duty Latch, Spring & Pin Included
- 100% Forged Alloy Steel
- Quenched And Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection

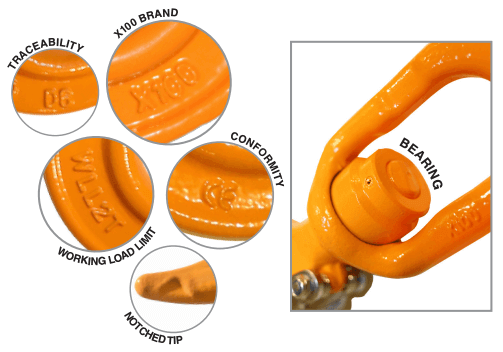

- Raised Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
STOCK NUMBER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | COMPATIBLE LATCH |
---|---|---|---|
XEHH100SBB | 1 | 1.10 | LK6325 |
XEHH200SBB | 2 | 2.5 | LK6421 |
XEHH300SBB | 3 | 3.8 | LK6468 |
XEHH500SBB | 5 | 7.0 | LK6515 |
XEHH700SBB | 7 | 14.0 | LK6562 |
XEHH1100SBB | 11 | 22.3 | LK6609 |
XEHH1500SBB | 15 | 30.0 | LK6657 |
Ultimate load is 5 times the Working Load Limit. Replacement Latch Kits available.

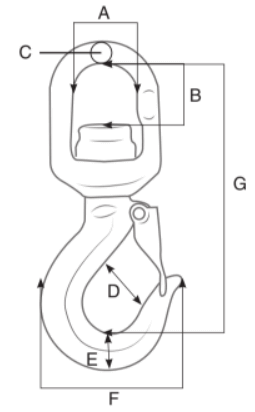

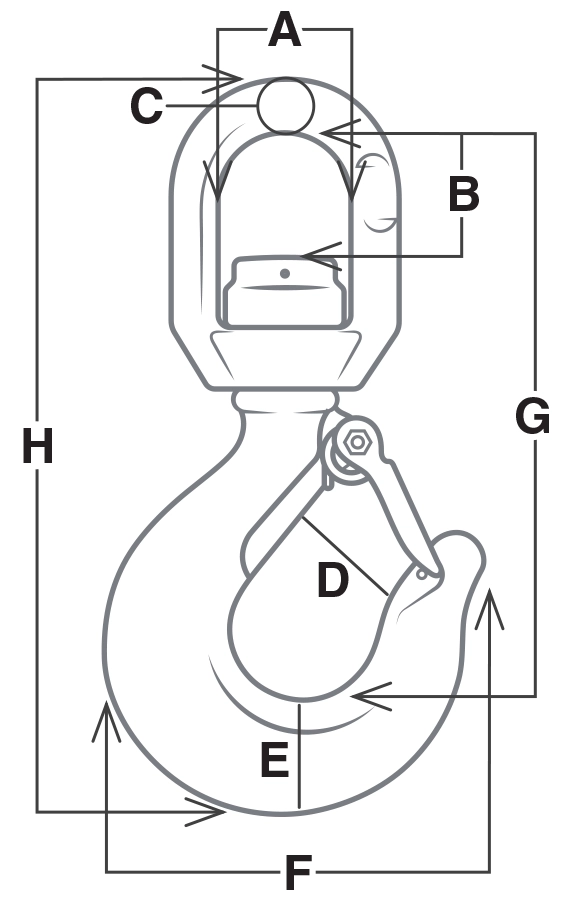

STOCK NUMBER | DIMENSIONS | |||||||
---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | H | |
XEHH100SBB | 1.636 | 1.468 | 0.65 | 0.88 | 0.75 | 2.865 | 5.72 | 7 |
XEHH200SBB | 2.065 | 1.77 | 0.714 | 0.94 | 1.023 | 3.55 | 6.625 | 8.25 |
XEHH300SBB | 2.05 | 1.76 | 0.725 | 1.107 | 1.13 | 3.88 | 7 | 8.75 |
XEHH500SBB | 2.36 | 2.3 | 0.94 | 0.9 | 1.45 | 4.93 | 9.125 | 11.5 |
XEHH700SBB | 2.78 | 2.48 | 1.07 | 1.65 | 1.87 | 6.25 | 10.25 | 12.75 |
XEHH1100SBB | 3.33 | 2.813 | 1.175 | 2.077 | 2.269 | 7 | 12.5 | 15.625 |
XEHH1500SBB | 3.98 | 4.43 | 1.62 | 2.3 | 2.61 | 8 | 15.5 | 19.625 |
