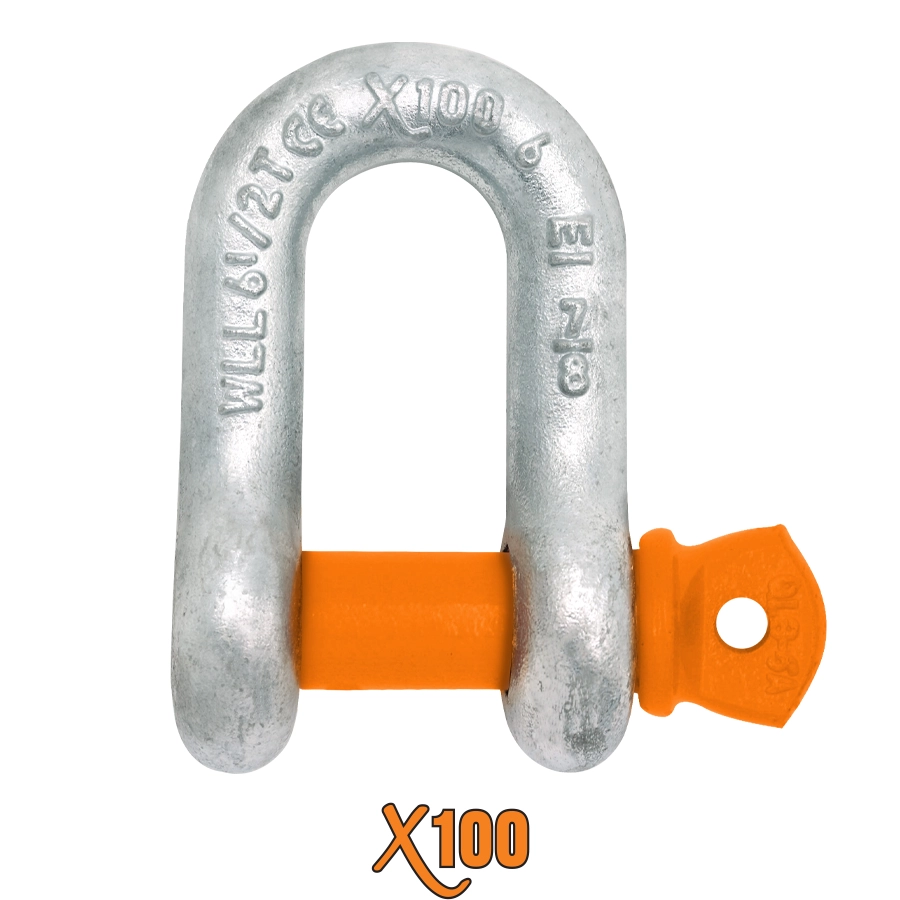

X100® Screw Pin Chain Shackles
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Carbon Steel Bow with Alloy Oversized Pin
- Designed & Suitable for Overhead Lifting
- Quenched & Tempered
- Markings: X100 Brand, Web Size, Working Load Limit
- Hot Dip Galvanized Body and Powder Coated X100 BLAZE ORANGE Pin
- Load Must Be Evenly Distributed Over Entire Pin to Achieve Full Working Load Limit
- NEVER Side Load or Point Load Pins or Bodies
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (IN) | STOCK NUMBER | PIN DIA (IN) | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS) |
|---|---|---|---|---|
| 1/4 | XSPC250 | 5/16 | 0.50 | 0.11 |
| 5/16 | XSPC312 | 3/8 | 0.75 | 0.18 |
| 3/8 | XSPC375 | 7/16 | 1.00 | 0.30 |
| 1/2 | XSPC500 | 5/8 | 2.00 | 0.59 |
| 5/8 | XSPC625 | 3/4 | 3.25 | 1.27 |
| 3/4 | XSPC750 | 7/8 | 4.75 | 2.60 |
| 7/8 | XSPC875 | 1 | 6.50 | 3.15 |
X100 Screw Pin Chain Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G, Type IVB, Grade A, Class 2. Meets ASME B30.26 requirements. Ultimate load is 5X the Working Load Limit.

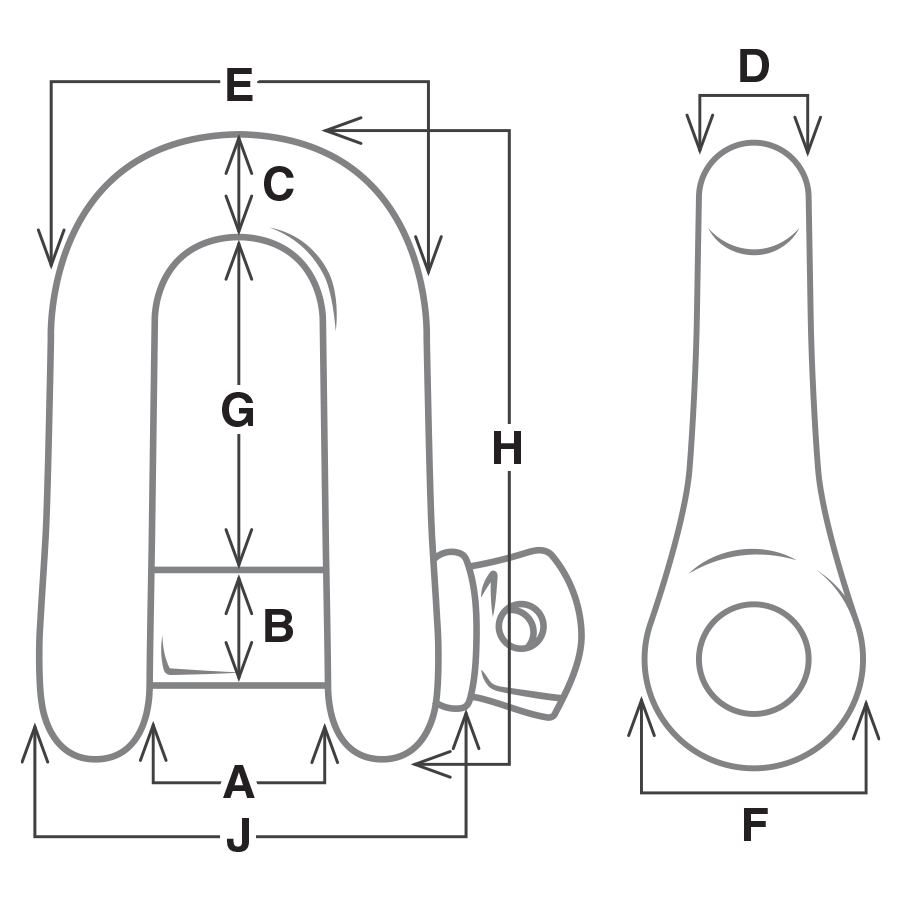

| STOCK NUMBER | DIMENSIONS (IN) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | |
| XSPC250 | .51 | .31 | .25 | .28 | 1.02 | .69 | .87 | 1.61 | 1.59 |
| XSPC312 | .55 | .38 | .32 | .30 | 1.17 | .81 | .98 | 1.91 | 1.71 |
| XSPC375 | .65 | .44 | .39 | .42 | 1.44 | .98 | 1.20 | 2.28 | 2.13 |
| XSPC500 | .83 | .62 | .50 | .52 | 1.80 | 1.20 | 1.62 | 3.01 | 2.69 |
| XSPC625 | 1.06 | .75 | .63 | .63 | 2.32 | 1.50 | 2.04 | 3.75 | 3.34 |
| XSPC750 | 1.26 | .87 | .76 | .76 | 2.74 | 1.88 | 2.43 | 4.56 | 3.97 |
| XSPC875 | 1.45 | .98 | .87 | .87 | 3.17 | 2.11 | 2.81 | 5.21 | 4.60 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
