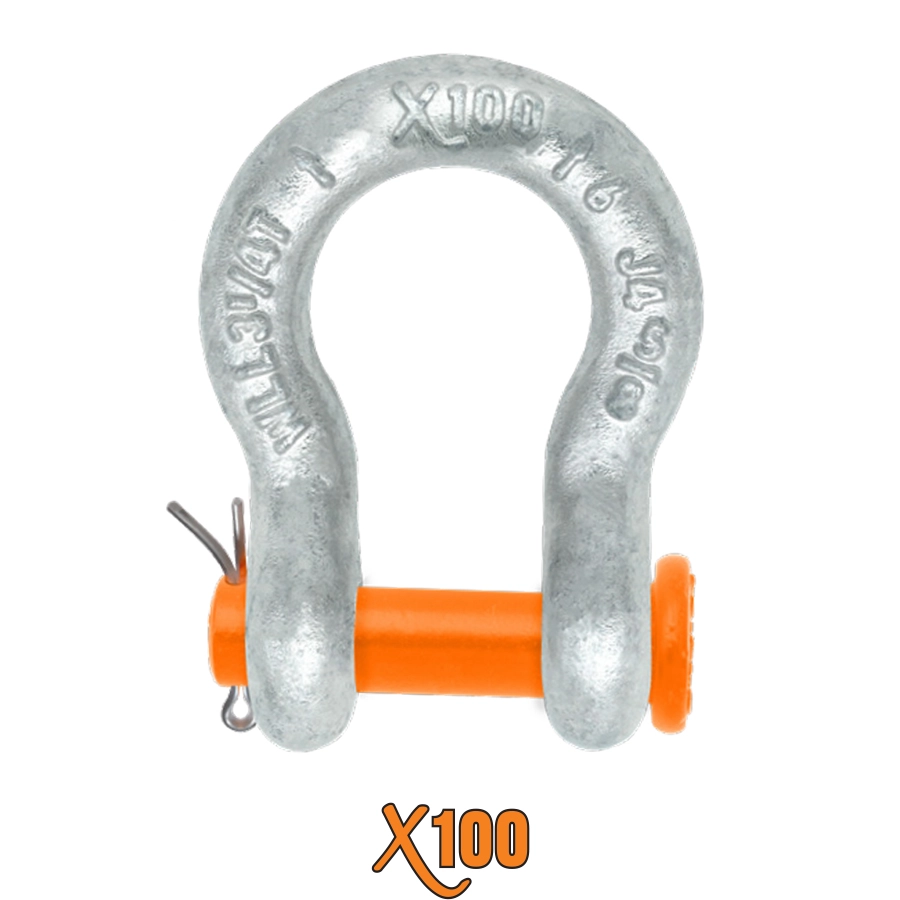

X100® Round Pin Anchor Shackles
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Carbon Steel Bow with Alloy Oversized Pin
- Designed & Suitable for Overhead Lifting
- Drop Forged, Load Rated, Hot Galvanized
- Quenched & Tempered
- Pin is Powder Coated X100 BLAZE ORANGE
- Breaking Strength to Working Load Limit Ratio 6:1
- Embossed Markings: X100 Brand, Size, Working Load Limit, Lot Trace Code
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
DROP FORGED, LOAD RATED, HOT GALVANIZED
| SIZE (IN) | STOCK NUMBER | PIN DIA (IN) | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS) |
|---|---|---|---|---|
| 1/4 |
XRPA250 |
5/16 |
0.50 |
0.13 |
| 5/16 |
XRPA312 |
3/8 |
0.75 |
0.18 |
| 3/8 |
XRPA375 |
7/16 |
1.00 |
0.25 |
| 1/2 |
XRPA500 |
5/8 |
2.00 |
0.50 |
| 5/8 |
XRPA625 |
3/4 |
3.25 |
1.50 |
X100 Round Pin Anchor Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G, Type IVA, Grade A, Class 1. Meets ASME B30.26 requirements. Ultimate load is 5X the Working Load Limit.

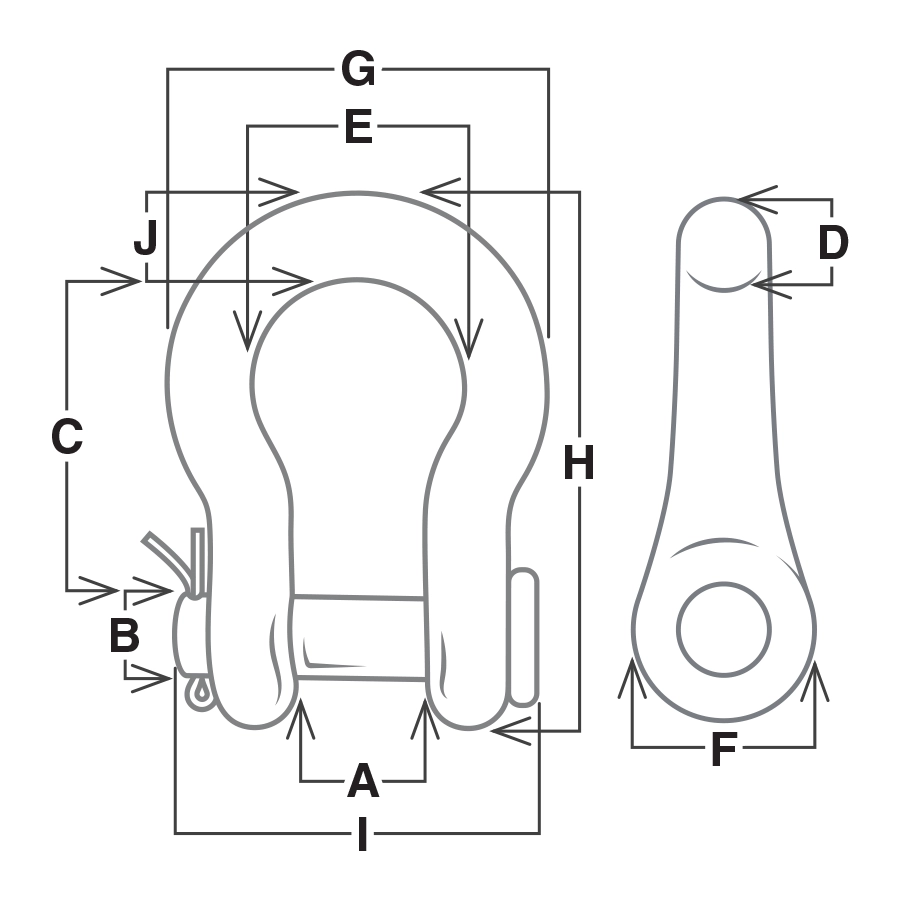

| STOCK NUMBER | DIMENSIONS (IN) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |
|
XRPA250 |
.48 |
.31 |
1.13 |
.26 |
.77 |
.67 |
1.29 |
1.88 |
1.34 |
.26 |
|
XRPA312 |
.51 |
.39 |
1.23 |
.32 |
.84 |
.85 |
1.47 |
2.12 |
1.61 |
.31 |
|
XRPA375 |
.68 |
.43 |
1.48 |
.39 |
1.01 |
.98 |
1.80 |
2.54 |
1.83 |
.39 |
|
XRPA500 |
.81 |
.63 |
1.88 |
.52 |
1.30 |
1.19 |
2.31 |
3.28 |
2.38 |
.50 |
|
XRPA625 |
1.09 |
.75 |
2.35 |
.66 |
1.65 |
1.58 |
2.94 |
4.13 |
3.02 |
.64 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
