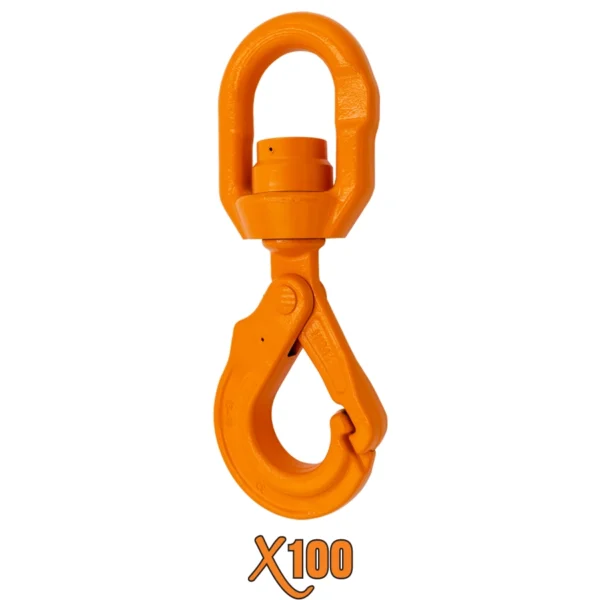

X100® Grade 100 Swivel Self Locking Hooks with Bearing
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- With Premium Roller Bearing
- With Protected Trigger System
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
- Specifications
- Dimension Reference
- The X100® Quality Latch System
- The X100® Protected Trigger System
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
| SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) | COMPATIBLE TRIGGER KIT |
|---|---|---|---|---|
| 9/32 – 5/16 | XSSL281-312PTWB | 5,700 | 2.50 | XPTK312 |
| 3/8 | XSSL375PTWB | 8,800 | 4.50 | XPTK375 |
| 1/2 | XSSL500PTWB | 15,000 | 8.90 | XPTK500 |
| 5/8 | XSSL625PTWB | 22,600 | 15.00 | XPTK625 |
| SIZE | DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312PTWB | 1.42 | 1.04 | 0.51 | 1.50 | 0.94 | 3.70 | 8.80 |
| XSSL375PTWB | 1.65 | 1.38 | 0.63 | 1.88 | 1.23 | 4.50 | 10.45 |
| XSSL500PTWB | 1.91 | 1.89 | 0.73 | 2.11 | 1.59 | 5.52 | 12.99 |
| XSSL625PTWB | 2.40 | 2.20 | 0.85 | 2.44 | 1.99 | 6.71 | 16.26 |
- Notched tip to help avoid hook damage
- Forged directly into the hook
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
