X100® Grade 100 Omega Link
APPROVED FOR OVERHEAD LIFTING
- OSHA compliant for overhead lifting
- Forged alloy steel
- Quenched & tempered
- 25% stronger than Grade 80 chain
- Plasticized powder coated orange gloss finish
- All load pins are 100% individually inspected and tested
- 100% proof tested at 2 times the working load limit
- 100% magnaflux crack detection
- Perfectly pairs with the X100® Chain Choker hook
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| 9/32″ – /16″ | XOL281-312 | 5,700 | 0.5 |
| 3/8″ | XOL375 | 8,800 | 0.85 |
| 1/2″ | XOL500 | 15,000 | 1.6 |
| 5/8″ | XOL625 | 22,600 | 2.9 |

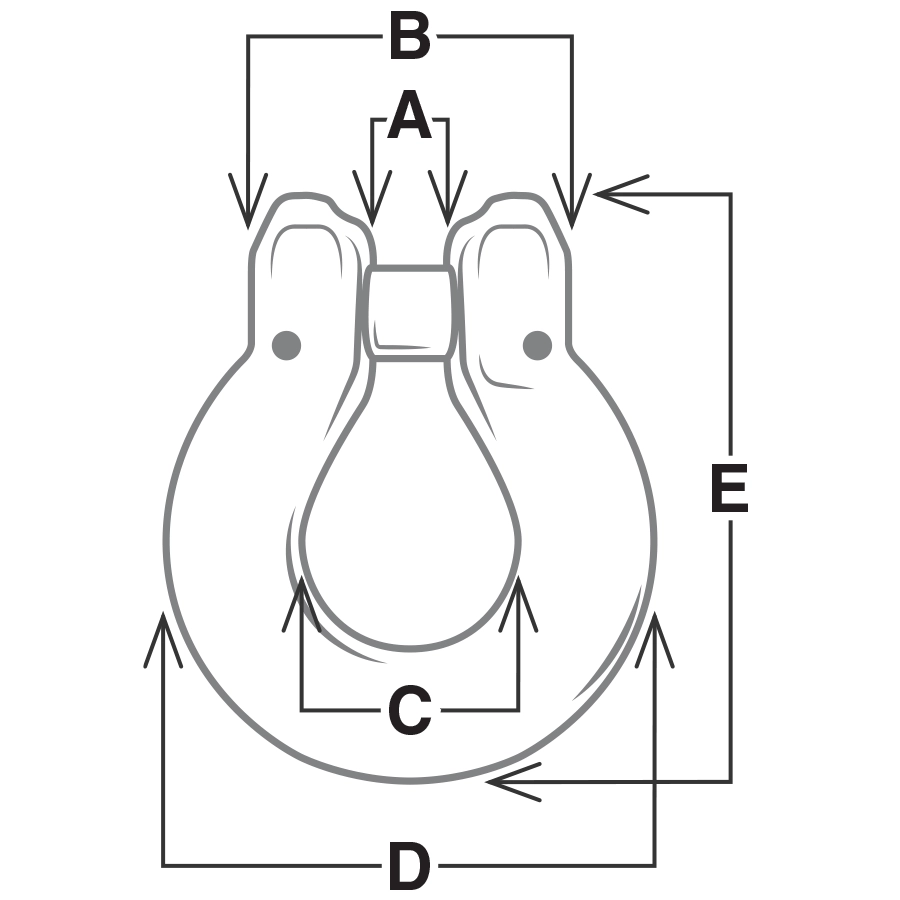

| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XOL281-312 | 0.41” | 1.65” | 0.94” | 2.36” | 2.89” |
| XOL375 | 0.49” | 1.91” | 1.22” | 2.76” | 3.54” |
| XOL500 | 0.63” | 2.36” | 1.52” | 3.54” | 4.29” |
| XOL625 | 0.75” | 2.97” | 2.01” | 4.41” | 5.57” |
