X100® Grade 100 Master Link With Adjusters
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

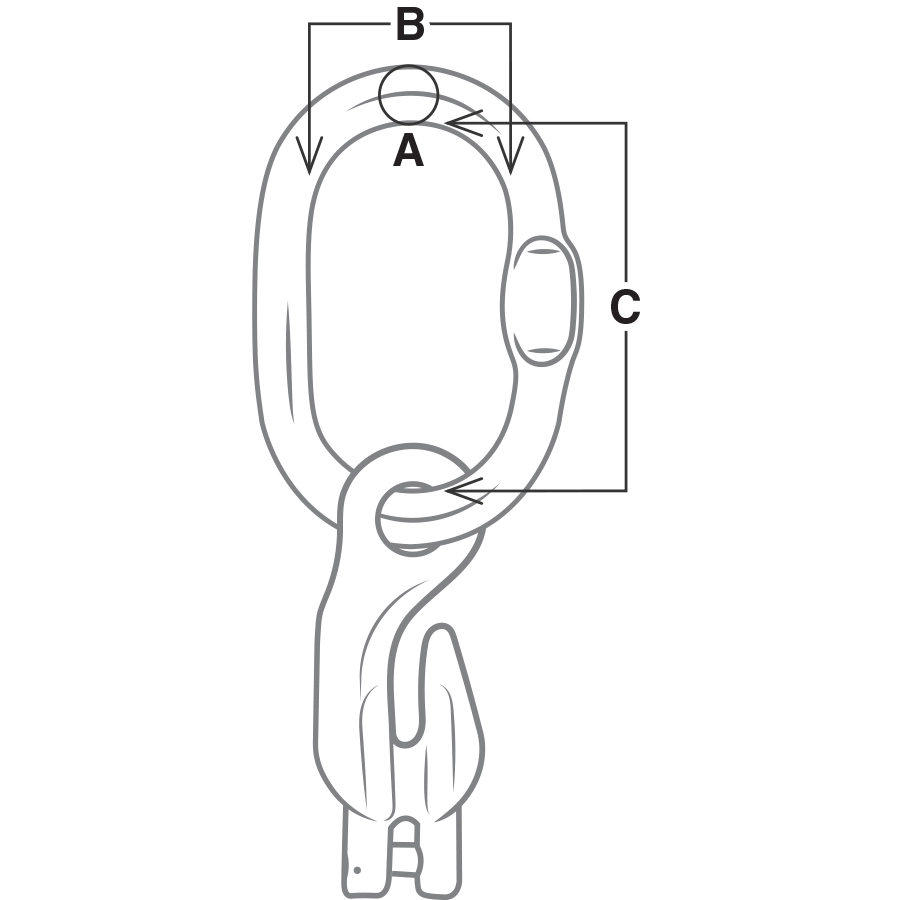

FOR SINGLE LEG CHAIN SLINGS
| STOCK NUMBER | CHAIN SIZE | DIMENSIONS | WORKING LOAD LIMIT 4:1 |
||
|---|---|---|---|---|---|
| A | B | C | |||
| XV1-7/8i | 9/32″-5/16″ | 0.551″ | 2.75″ | 4.72″ | 5,700 lbs. |
| XV1-10i | 3/8″ | 0.669″ | 3.15″ | 5.51″ | 8,800 lbs. |
| XV1-13i | 1/2″ | 0.866″ | 3.74″ | 6.29″ | 15,000 lbs. |
| XV1-16i | 5/8″ | 0.984″ | 4.33″ | 7.48″ | 22,600 lbs. |
NOT TO BE USED FOR BASKET APPLICATION.

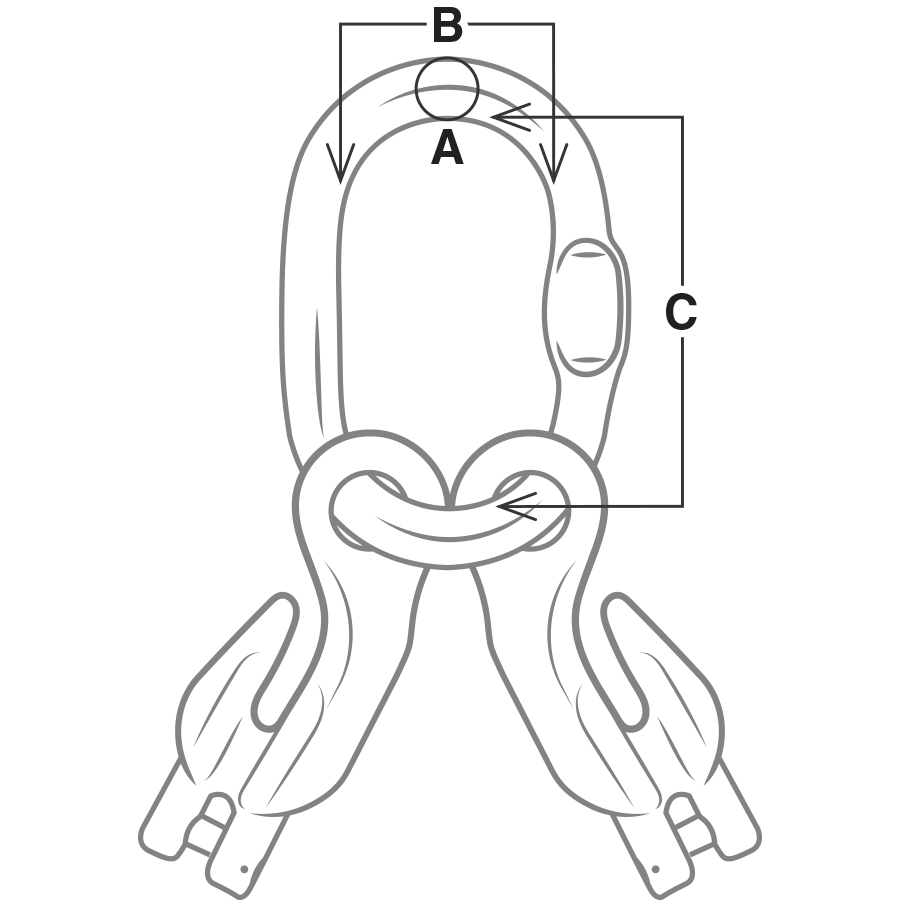

FOR DOUBLE LEG CHAIN SLINGS
| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT 4:1 |
||
|---|---|---|---|---|---|
| A | B | C | |||
| XV2-7/8i | 9/32″-5/16″ | 0.669″ | 3.15″ | 5.15″ | 9,900 lbs. |
| XV2-10i | 3/8″ | 0.866″ | 3.74″ | 6.29″ | 15200 lbs. |
| XV2-13i | 1/2″ | 0.984″ | 4.33″ | 7.48″ | 26000 lbs. |
| XV2-16i | 5/8″ | 1.26″ | 5.11″ | 9.05″ | 39100 lbs. |

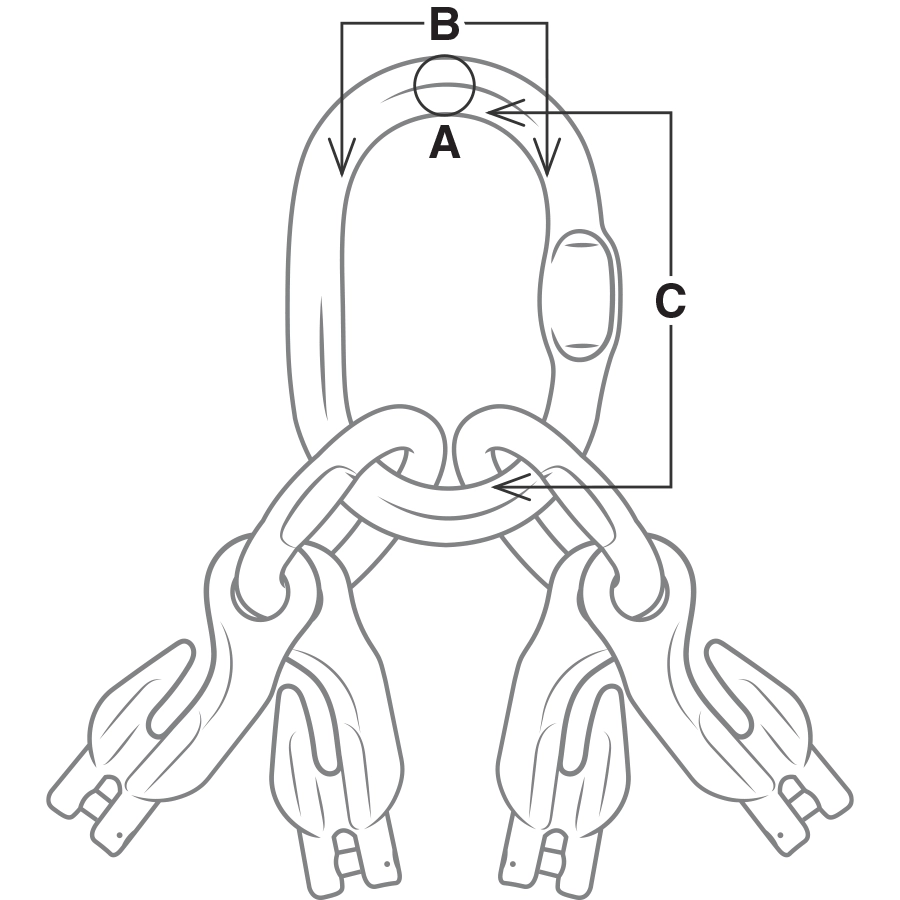

FOR TRIPLE AND QUADRUPLE LEG CHAIN SLINGS
| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT 4:1 |
||
|---|---|---|---|---|---|
| A | B | C | |||
| XV4-7/8i | 9/32″-5/16″ | 0.669″ | 3.15″ | 5.51″ | 14,800 lbs. |
| XV4-10i | 3/8″ | 0.866″ | 3.74″ | 6.29″ | 22,900 lbs. |
| XV4-13i | 1/2″ | 0.984″ | 4.33″ | 7.48″ | 39,000 lbs. |
| XV4-16i | 5/8″ | 1.26″ | 5.11″ | 9.05″ | 58,700 lbs. |
NOT TO BE USED FOR BASKET APPLICATION.
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
| STOCK NUMBER | DIMENSIONS | ||
|---|---|---|---|
| A | B | C | |
| XV1-7/8i | 0.551” | 2.75” | 4.72” |
| XV1-10i | 0.669” | 3.15” | 5.51” |
| XV1-13i | 0.866” | 3.74” | 6.29” |
| XV1-16i | 0.984” | 4.33” | 7.48” |
| STOCK NUMBER | DIMENSIONS | ||
|---|---|---|---|
| A | B | C | |
| XV2-7/8i | 0.669” | 3.15” | 5.15” |
| XV2-10i | 0.866” | 3.74” | 6.29” |
| XV2-13i | 0.984” | 4.33” | 7.48” |
| XV2-16i | 1.26” | 5.11” | 9.05” |
| STOCK NUMBER | DIMENSIONS | ||
|---|---|---|---|
| A | B | C | |
| XV4-7/8i | 0.669” | 3.15” | 5.15” |
| XV4-10i | 0.866” | 3.74” | 6.29” |
| XV4-13i | 0.984″ | 4.33” | 7.8” |
| XV4-16i | 1.26” | 5.11” | 9.05” |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
