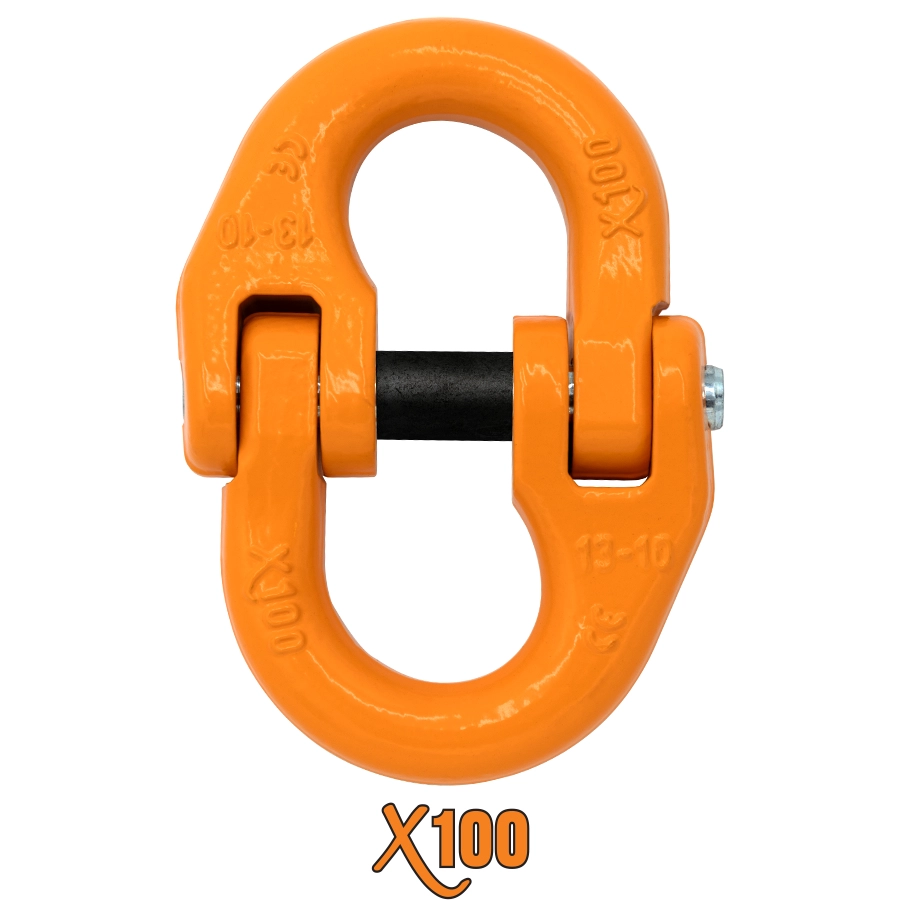

X100® Grade 100 Coupling Link
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| 9/32″ | XCL281 | 4,300 | 0.50 |
| 5/16″ | XCL312 | 5,700 | 0.75 |
| 3/8″ | XCL375 | 8,800 | 1.05 |
| 1/2″ | XCL500 | 15,000 | 1.71 |
| 5/8″ | XCL625 | 22,600 | 3.9 |
| 3/4″ | XCL750 | 35,300 | 6.0 |
| STOCK NUMBER | DIMENSIONS | |||
|---|---|---|---|---|
| A | B | C | D | |
| XCL281 | 0.30” | 0.55” | 1.75” | 2.36” |
| XCL312 | 0.40” | 0.84” | 2.42” | 3.25” |
| XCL375 | 0.50” | 1.02” | 2.70” | 3.71” |
| XCL500 | 0.64” | 1.23” | 3.50” | 4.83” |
| XCL625 | 0.78” | 1.44” | 4.06” | 5.71” |
| XCL750 | 0.97” | 1.79” | 4.74” | 6.89” |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
