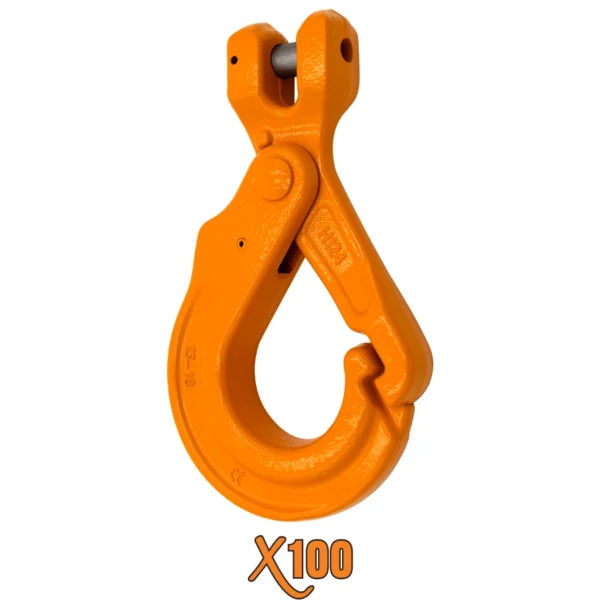

X100® Grade 100 Clevis Self Locking Hooks
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- All Load Pins Are 100% Individually Inspected And Tested
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- With Protected Trigger System
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
- Specifications
- Dimension Reference
- The X100® Quality Latch System
- The X100® Protected Trigger System
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
| SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | COMPATIBLE TRIGGER KIT |
|---|---|---|---|---|
| 9/32 – 5/16 | XCSL281-312PT | 5,700 | 2.00 | XPTK281-312 |
| 3/8 | XCSL375PT | 8,800 | 3.55 | XPTK375 |
| 1/2 | XCSL500PT | 15,000 | 6.20 | XPTK500 |
| 5/8 | XCSL625PT | 22,600 | 12.80 | XPTK625 |
| 3/4 | XCSL750PT | 35,300 | 28.00 | XPTK750 |
| 7/8 | XCSL875PT | 42,700 | 34.00 | XPTK875 |

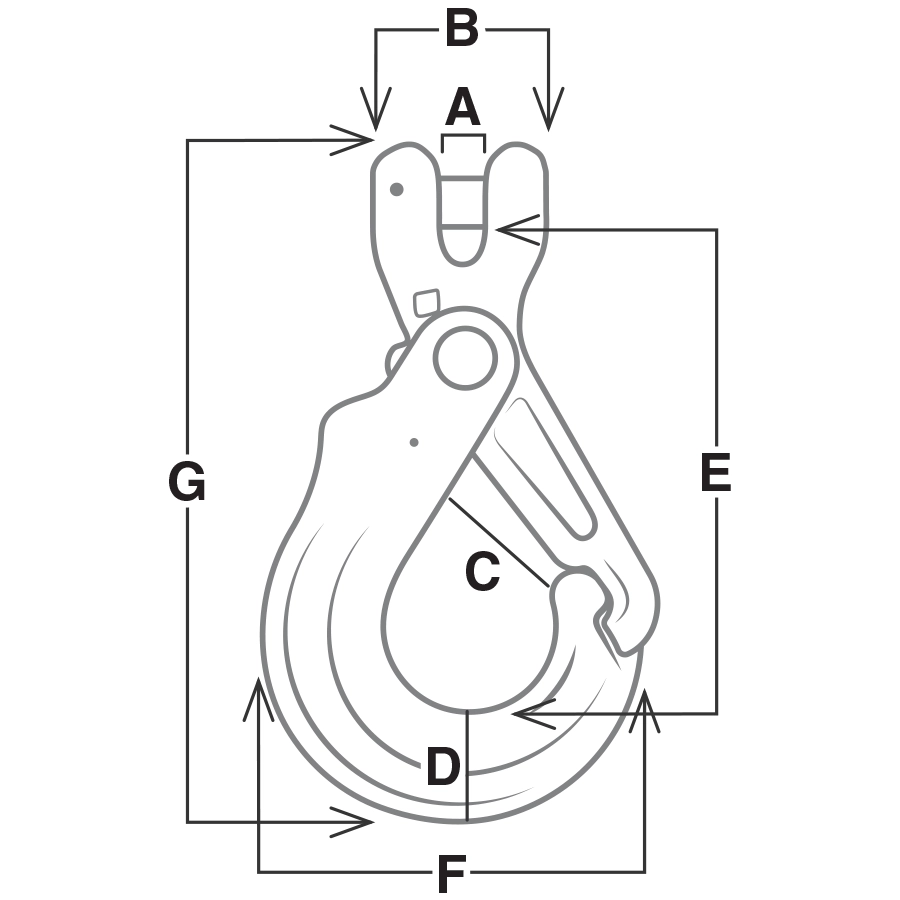

| STOCK NUMBER | DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XCSL281-312PT | 0.37 | 1.53 | 1.54 | 0.92 | 4.67 | 3.68 | 6.30 |
| XCSL375PT | 0.47 | 1.92 | 1.93 | 1.23 | 5.80 | 4.43 | 7.95 |
| XCSL500PT | 0.59 | 2.41 | 2.03 | 1.59 | 6.85 | 5.45 | 9.61 |
| XCSL625PT | 0.73 | 2.91 | 2.71 | 1.85 | 7.95 | 6.80 | 11.22 |
| XCSL750PT | 0.98 | 3.35 | 3.01 | 2.44 | 9.25 | 7.58 | 13.29 |
| XCSL875PT | 1.11 | 3.75 | 3.01 | 2.68 | 10.31 | 8.38 | 15.25 |
- Notched tip to help avoid hook damage
- Forged directly into the hook
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
