X100® Grade 100 Master Link Sub Assembly
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- For use in fabricating 3 & 4-Leg chain slings

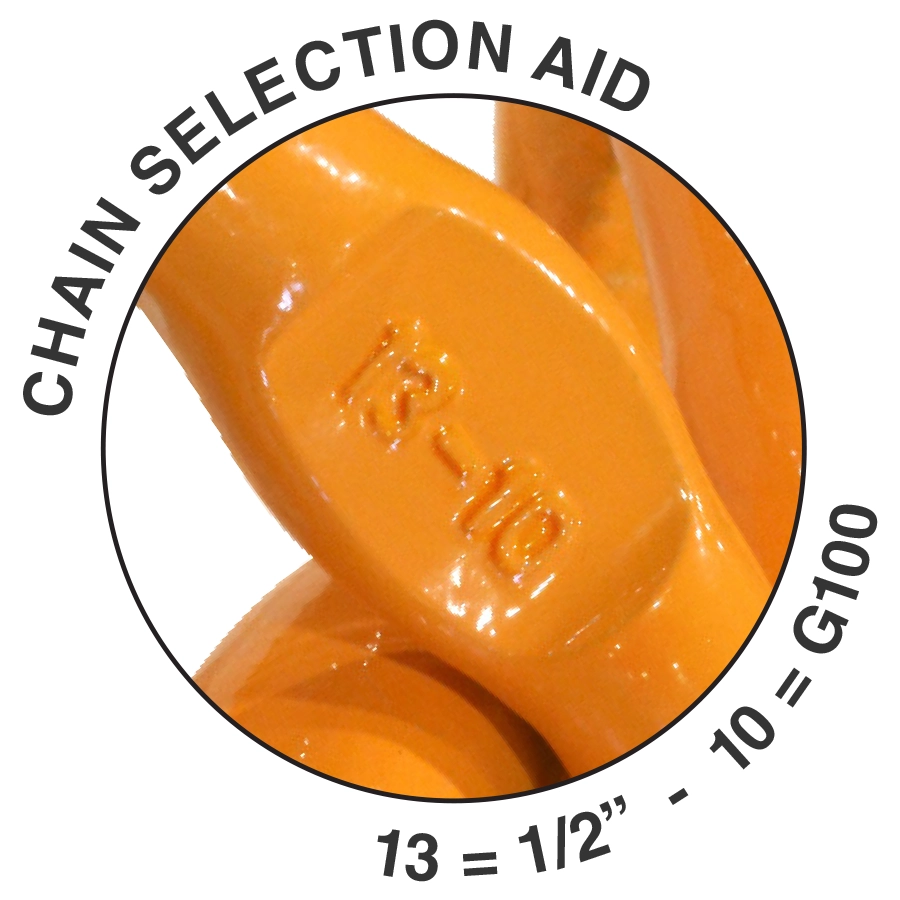

- Main master link with engineered flat spot
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | CHAIN SIZE | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| 3/4″ | XMLSA19 | 9/32″ | 11,200 lbs. | 3.0 |
| 7/8″ | XMLSA22 | 5/16″ | 15,200 lbs. | 4.5 |
| 1″ | XMLSA26 | 3/8″ | 26,000 lbs. | 7.8 |
| 1 1/4″ | XMLSA32 | 1/2″ | 39,000 lbs. | 13.3 |
| 1 1/2 | XMLSA38 | 5/8″ | 61,000 lbs. | 25.3 |
First drawing (A-C) indicates master link. Second drawing (D-F) indicated sublinks.
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
| DIMENSIONS | |||||
|---|---|---|---|---|---|
| A | B | C | D | E | F |
| .75” | 2.77” | 5.31” | .51” | 1.54” | 3.26” |
| .91” | 3.54” | 6.30” | .65″ | 1.54” | 3.26” |
| 1.06” | 3.62” | 7.21” | .75″ | 2.15” | 4.00” |
| 1/2” | 1.30” | 4.33” | 8.78” | .91″ | 2.26” |
| 1.50” | 5.51” | 10.70” | 1.06″ | 4.06” | 7.20” |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
