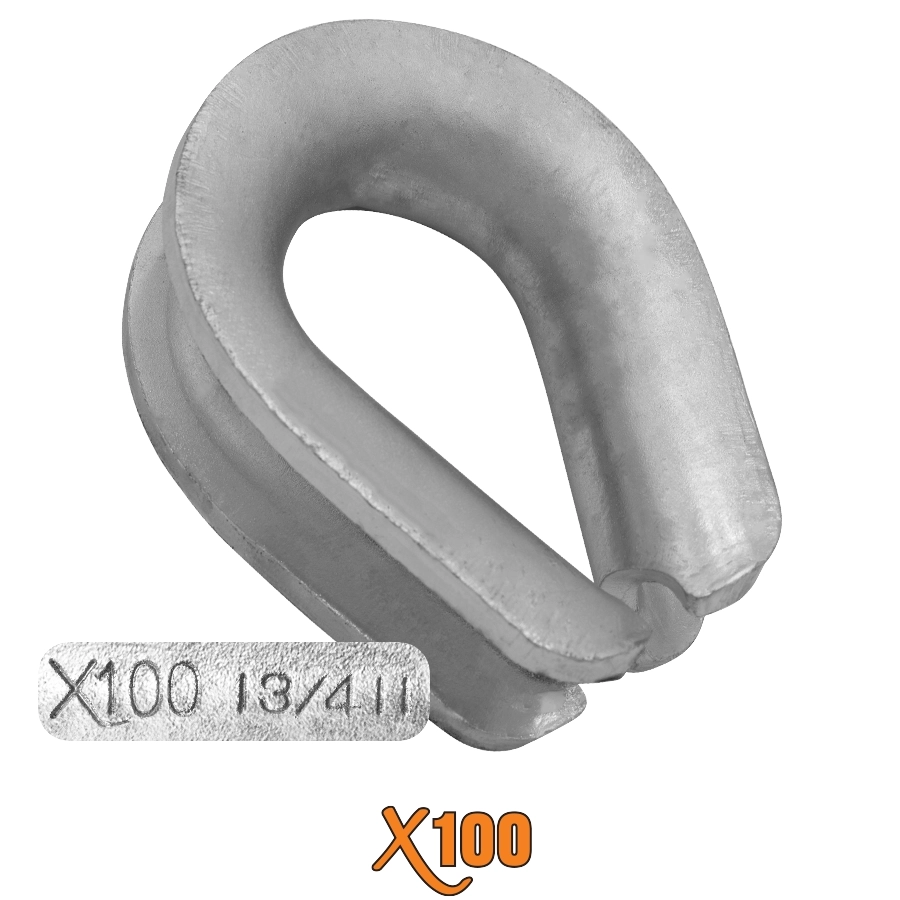

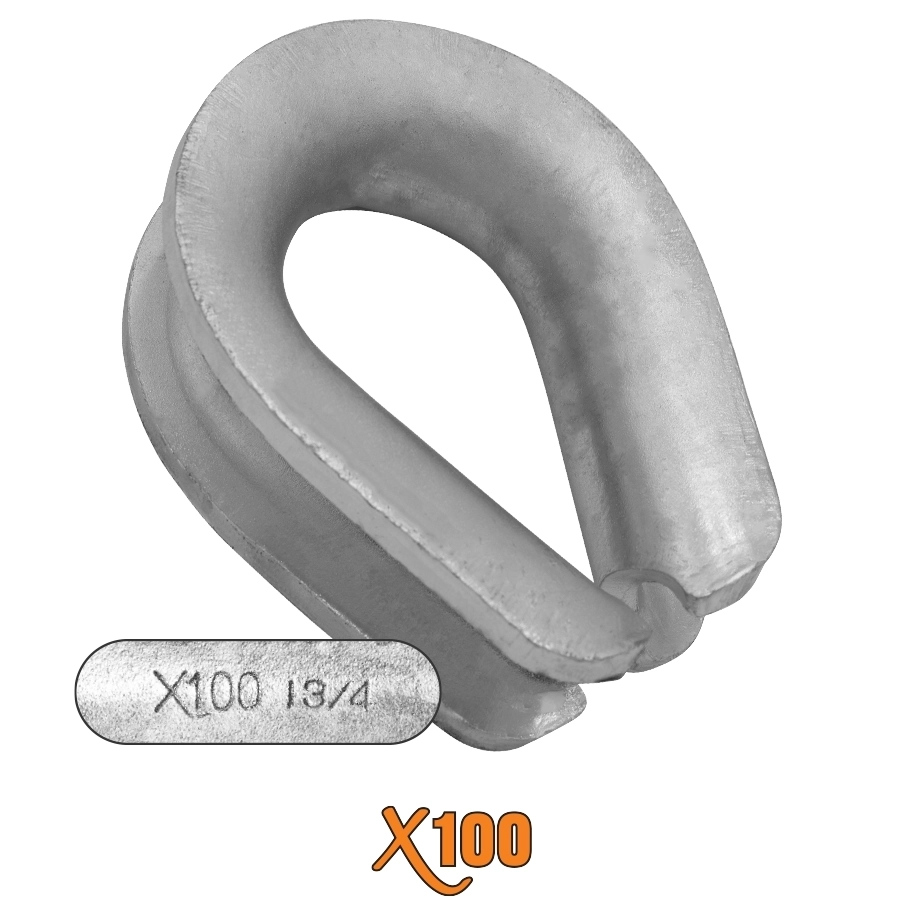

X100® Extra Heavy Duty Hot Dip Galvanized Thimbles
SEE THE X100® DIFFERENCE IN OUR EXTRA HEAVY DUTY THIMBLES
X100® Extra Heavy Duty thimbles stand out as superior wire rope fittings due to their ability to handle higher loads and offer enhanced protection against wear and deformation. Unlike standard thimbles, they provide extra strength to prevent damage to the rope or wire they secure.
KEY ADVANTAGES:
- Increased Material Thickness & Depth – Provides Superior Protection for Wire Rope
- Ideal for High-Stress Applications – Designed to Withstand Extreme Loads
- Exceptional Durability – Offers Long-Lasting Performance in Demanding Conditions
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (IN) | STOCK NUMBER | WEIGHT/100 PCS (LBS) |
|---|---|---|
| 3/16 | XTHD187 | 3.2 |
| 1/4 | XTHD250 | 5.9 |
| 5/16 | XTHD312 | 10 |
| 3/8 | XTHD375 | 21 |
| 7/16 | XTHD437 | 29 |
| 1/2 | XTHD500-562 | 56 |
| 5/8 | XTHD625 | 78 |
| 3/4 | XTHD750 | 150 |
| 7/8 | XTHD875 | 186 |
| 1 | XTHD100 | 280 |
| 1-1/8 – 1-1/4 | XTHD1125-1250 | 400 |
| 1-1/4 – 1-3/8 | XTHD1250-1375 | 800 |
| 1-3/8 – 1-1/2 | XTHD1375-1500 | 1,200 |
| 1-3/4 | XTHD1750 | 1,860 |
Extra Heavy Duty – According to Federal Specification FF-T-276B, Type III.

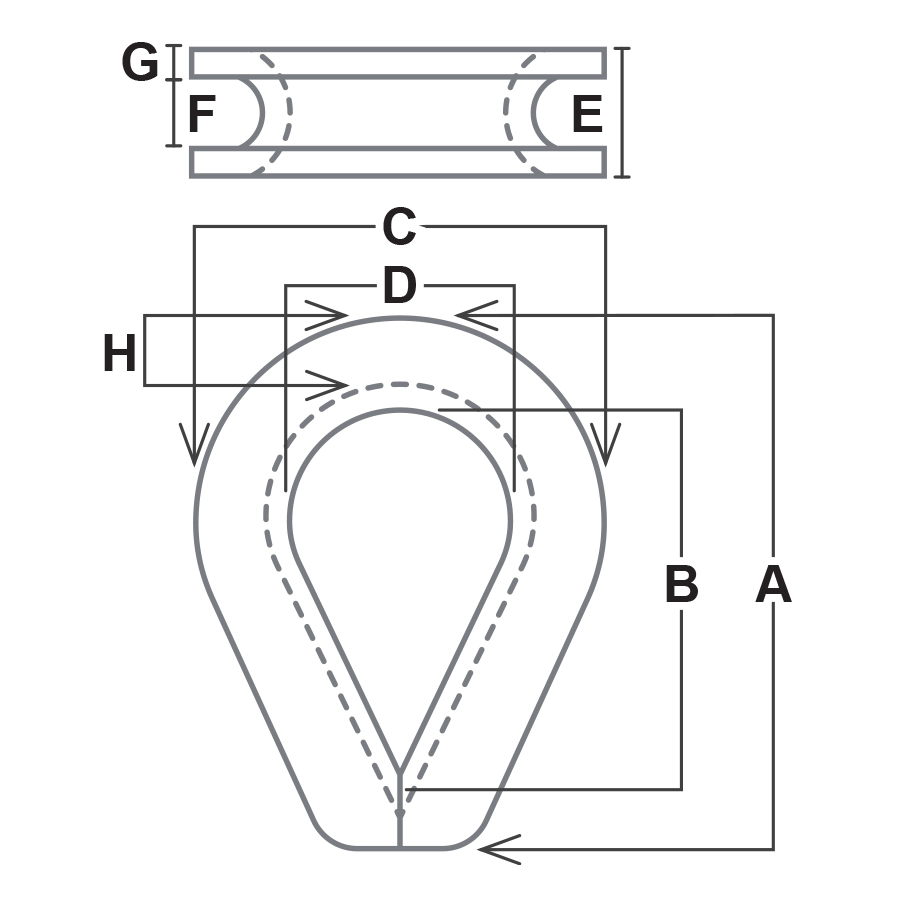

| STOCK NUMBER | DIMENSIONS (IN) | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XTHD187 | 1.71 | 1.148 | 1.282 | 0.75 | 0.357 | 0.25 | 0.05 | 0.252 |
| XTHD250 | 2.18 | 1.917 | 1.46 | 0.848 | 0.48 | 0.375 | 0.06 | 0.293 |
| XTHD312 | 2.53 | 1.89 | 1.835 | 1.06 | 0.54 | 0.4 | 0.075 | 0.378 |
| XTHD375 | 2.893 | 2.11 | 2.05 | 1.103 | 0.73 | 0.525 | 0.125 | 0.445 |
| XTHD437 | 3.296 | 2.438 | 2.337 | 1.24 | 0.815 | 0.584 | 0.128 | 0.536 |
| XTHD500-562 | 3.877 | 2.834 | 2.77 | 1.5 | 0.95 | 0.65 | 0.165 | 0.62 |
| XTHD625 | 4.54 | 3.38 | 3.186 | 1.725 | 1.06 | 0.762 | 0.17 | 0.72 |
| XTHD750 | 5.09 | 3.625 | 3.885 | 2.077 | 1.33 | 0.92 | 0.28 | 0.88 |
| XTHD875 | 5.5 | 4.178 | 4.212 | 2.26 | 1.512 | 1.13 | 0.265 | 0.93 |
| XTHD100 | 6.25 | 4.531 | 4.833 | 2.525 | 1.678 | 1.212 | 0.3 | 1.114 |
| XTHD1125-1250 | 7.25 | 5.271 | 5.6875 | 2.907 | 1.974 | 1.59 | 0.3 | 1.36 |
| XTHD1250-1375 | 9 | 6.625 | 6.6875 | 3.541 | 2.407 | 1.694 | 0.43 | 1.5 |
| XTHD1375-1500 | 9 | 6.25 | 6.9375 | 3.5 | 1.93 | 2.8 | 0.545 | 1.83 |
| XTHD1750 | 12 | 9 | 8.375 | 4.43 | 3.234 | 2.35 | 1.88 | 2.23 |
Extra Heavy Duty – According to Federal Specification FF-T-276B, Type III.
