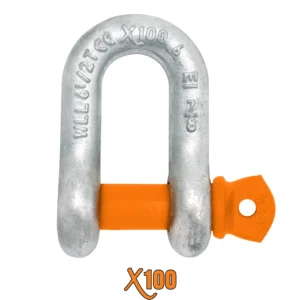

X100® Bolt Type Web Shackles
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Carbon Steel Bow with Alloy Oversized Pin
- Designed & Suitable for Overhead Lifting
- Quenched & Tempered
- Markings: X100 Brand, Web Size, Working Load Limit
- Hot Dip Galvanized Body and Powder Coated X100 BLAZE ORANGE Pin
- Load Must Be Evenly Distributed Over Entire Pin to Achieve Full Working Load Limit
- NEVER Side Load or Point Load Pins or Bodies
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| WEB SIZE (IN) | STOCK NUMBER | PIN DIA (IN) | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS) | QTY/BOX |
|---|---|---|---|---|---|
| 3 |
XWSB3 |
0.88 |
6.75 |
3.0 |
10 |
|
4 |
XWSB4 |
0.87 |
7.25 |
3.8 |
10 |
|
5 |
XWSB5 |
1.01 |
9.50 |
6.2 |
8 |
|
6 |
XWSB6 |
1.25 |
11.25 |
10.4 |
4 |
X100 Bolt Type Web Shackles are suitable for overhead lifting. Meets ASME B30.26 requirements. Ultimate load is 5X the Working Load Limit.
| STOCK NUMBER | DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
|
XWSB3 |
0.88 |
0.80 |
3.26 |
3.05 |
6.16 |
5.44 |
1.95 |
|
XWSB4 |
0.87 |
0.85 |
3.57 |
3.93 |
7.26 |
5.82 |
1.83 |
|
XWSB5 |
1.01 |
1.03 |
4.31 |
5.07 |
8.75 |
6.74 |
2.41 |
|
XWSB6 |
1.25 |
1.16 |
5.20 |
6.12 |
10.36 |
7.98 |
2.66 |
