X100® Grade 100 Swivel Eye Hoist Hooks with Bronze Bushing
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Notched Tip & Latch
- Heavy Duty Latch, Spring & Pin Included
- 100% Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- Raised Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | COMPATIBLE LATCH |
|---|---|---|---|
| XEHH100S |
1 |
0.78 |
LK6325 |
| XEHH200S |
2 |
2.02 |
LK6421 |
| XEHH300S |
3 |
2.57 |
LK6468 |
| XEHH500S |
5 |
4.89 |
LK6515 |
| XEHH700S |
7 |
10.29 |
LK6562 |
| XEHH1100S |
11 |
18.62 |
LK6609 |
| XEHH1500S |
15 |
23.30 |
LK6657 |
| XEHH2200S |
22 |
47.00 |
LK22TONA |

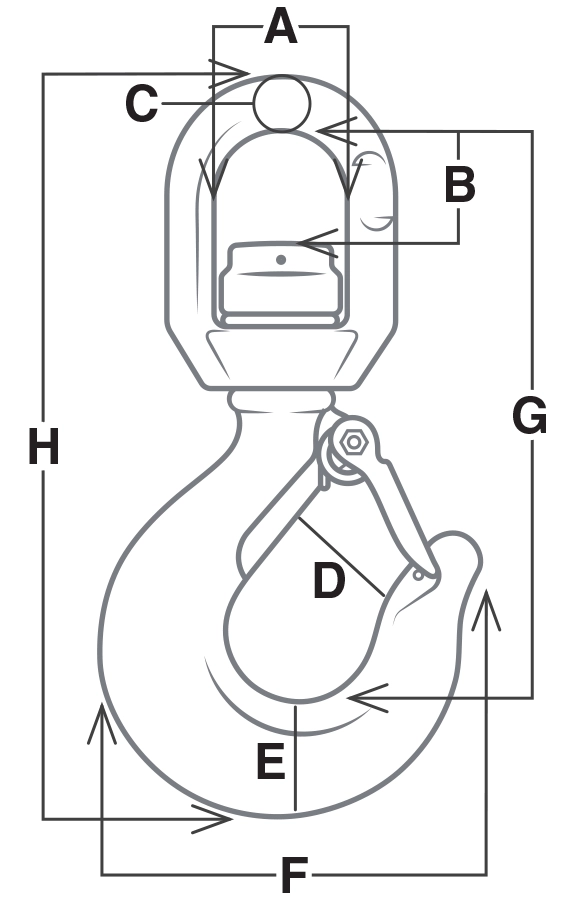

| STOCK NUMBER | DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XEHH100S |
1.26 |
0.936 |
0.46 |
0.88 |
0.75 |
2.865 |
4.77 |
6 |
| XEHH200S |
2.065 |
1.77 |
0.714 |
0.94 |
1.023 |
3.55 |
6.5 |
8.25 |
| XEHH300S |
2.05 |
1.76 |
0.725 |
1.107 |
1.13 |
3.88 |
7 |
8.75 |
| XEHH500S |
2.36 |
2.3 |
0.94 |
0.9 |
1.453 |
4.93 |
7.875 |
10 |
| XEHH700S |
2.78 |
2.5 |
1.074 |
1.65 |
1.87 |
6.25 |
10.25 |
12.75 |
| XEHH1100S |
3.33 |
2.813 |
1.175 |
2.077 |
2.269 |
7 |
11.25 |
15.625 |
| XEHH1500S |
3.75 |
3.92 |
1.41 |
2.3 |
2.61 |
8 |
15 |
19 |
| XEHH2200S |
4.02 |
4.02 |
1.668 |
2.765 |
3.04 |
10 |
16.5 |
21.125 |
