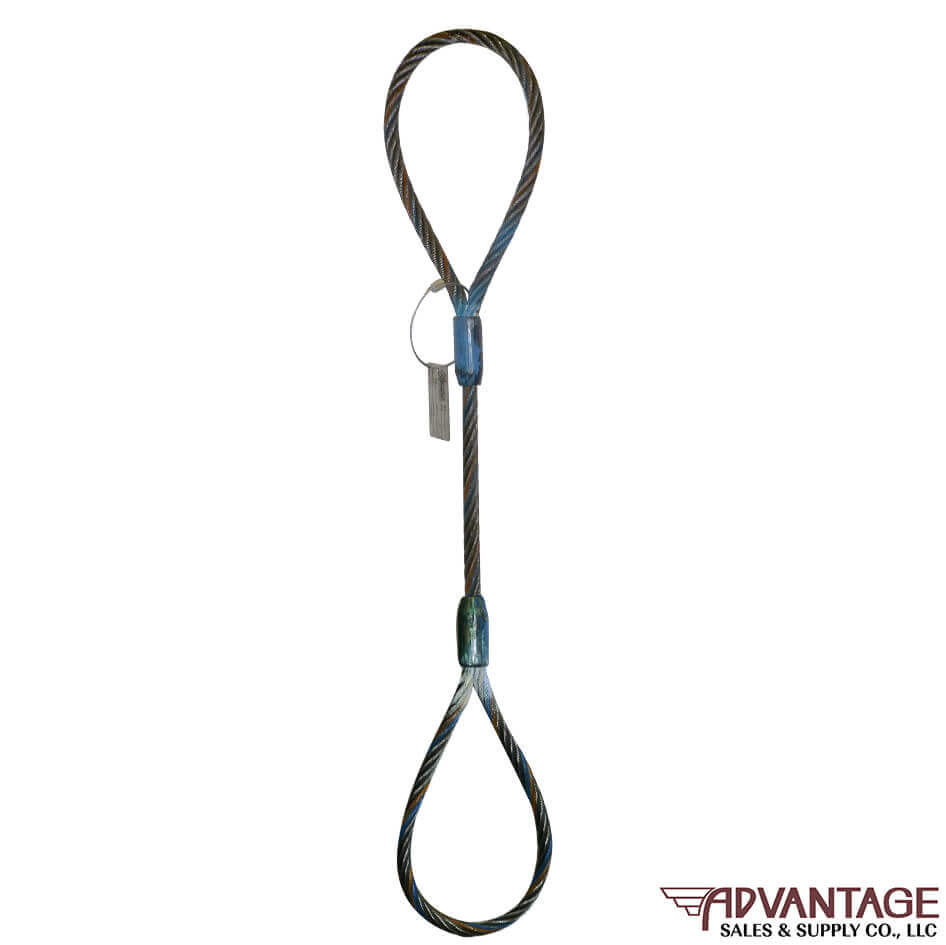

Single-Leg Wire Rope Slings
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Single-Leg Wire Rope Slings
| ROPE DIA. |
WORKING LOAD LIMIT (TON) EIPS IWRC W/R |

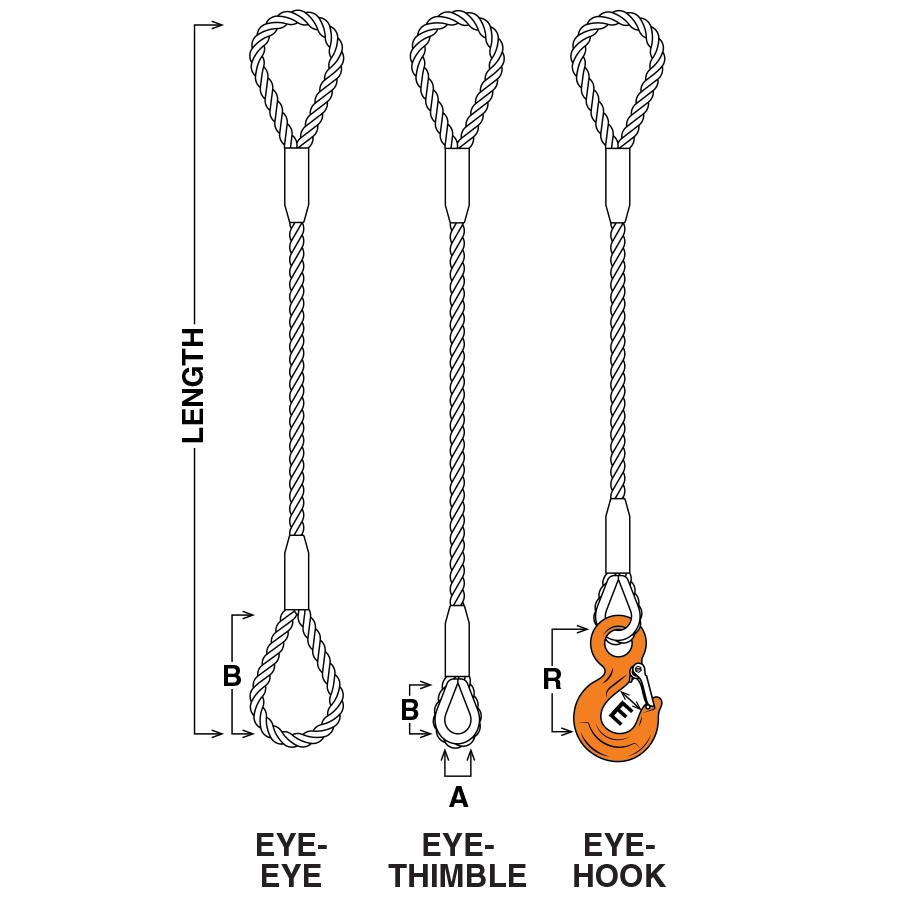

EYE DIMENSIONS | THIMBLE | STANDARD HOOK SELECTION | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VERTICAL | CHOKER | BASKET | A | B | A | B | WLL TON |
E | R | |
| 1/4″ | .65 | .48 | 1.3 | 2″ | 4″ | 7/8″ | 1-5/8″ | 1 | 7/8″ | 3-5/16″ |
| 5/16″ | 1.0 | .74 | 2.0 | 2-1/2″ | 5-1/2″ | 1-1/16″ | 2″ | 1 | 7/8″ | 3-5/16″ |
| 3/8″ | 1.4 | 1.1 | 2.9 | 3″ | 6″ | 1-1/8″ | 2-1/8″ | 1-1/2 | 7/8″ | 3-5/8″ |
| 7/16″ | 1.9 | 1.4 | 3.9 | 3-1/2″ | 7″ | 1-1/4″ | 2-1/4″ | 2 | 1-1/16″ | 4″ |
| 1/2″ | 2.5 | 1.9 | 5.1 | 4″ | 8″ | 1-1/2″ | 2-15/16″ | 3 | 1-1/4″ | 4-1/2″ |
| 9/16″ | 3.2 | 2.4 | 6.4 | 4-1/2″ | 9″ | 1-1/2″ | 2-15/16″ | 5 | 1-1/2″ | 5-3/4″ |
| 5/8″ | 3.9 | 2.9 | 7.8 | 5″ | 10″ | 1-3/4″ | 3-1/4″ | 5 | 1-1/2″ | 5-3/4″ |
| 3/4″ | 5.6 | 4.1 | 11 | 6″ | 12″ | 2″ | 3-3/4″ | 7 | 2″ | 7-1/8″ |
| 7/8″ | 7.6 | 5.6 | 15 | 7″ | 14″ | 2-1/4″ | 4-1/4″ | 11 | 2-1/8″ | 9″ |
| 1″ | 9.8 | 7.2 | 20 | 8″ | 16″ | 2-1/2″ | 4-1/2″ | 11 | 2-1/8″ | 9″ |
| 1-1/8″ | 12 | 9.1 | 24 | 9″ | 18″ | 2-7/8″ | 5-1/4″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/4″ | 15 | 11 | 30 | 10″ | 20″ | 3-1/2″ | 6-1/4″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/2″ | 21 | 16 | 42 | 12″ | 24″ | 3-1/2″ | 6-1/4″ | 22 | 3″ | 12-1/2″ |
| 1-3/4″ | 28 | 21 | 57 | 14″ | 28″ | 4-1/2″ | 9″ | 30 | 3-1/2″ | 13-7/8″ |
| 2″ | 37 | 28 | 73 | 16″ | 32″ | 6″ | 12″ | 37 | 4-1/2″ | 18-3/16″ |
All capacities in tons (2,000 lbs.) All eye and fitting dimensions in inches.
Any and all sizes are available. Please contact your sales representative for details.
WARNING Do not exceed working load limit.

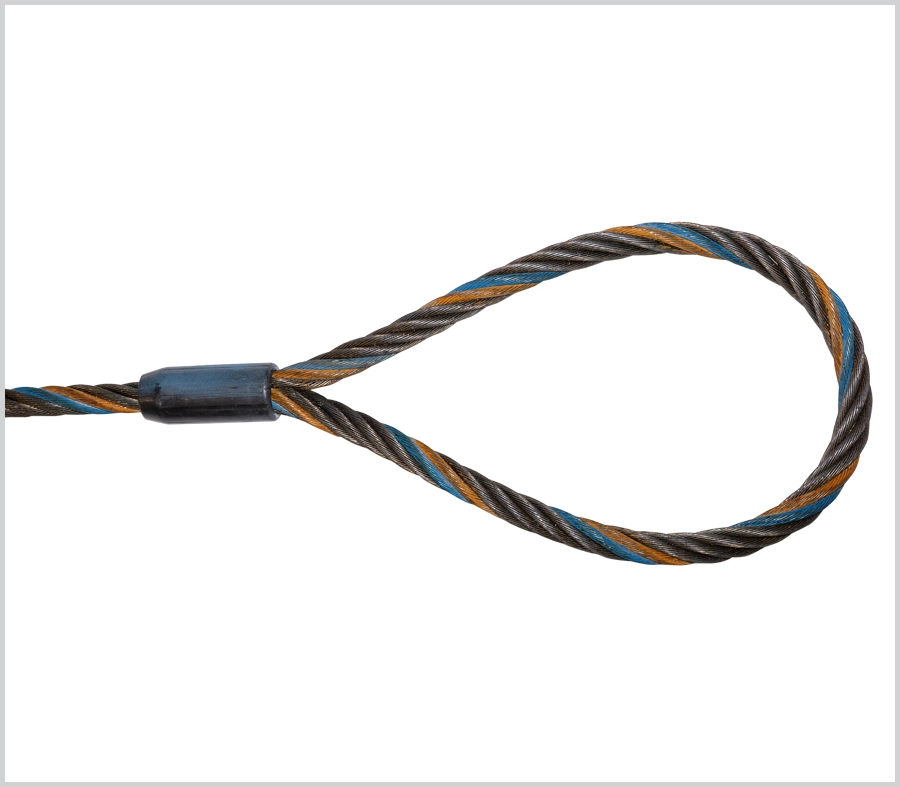

Flemished Eye

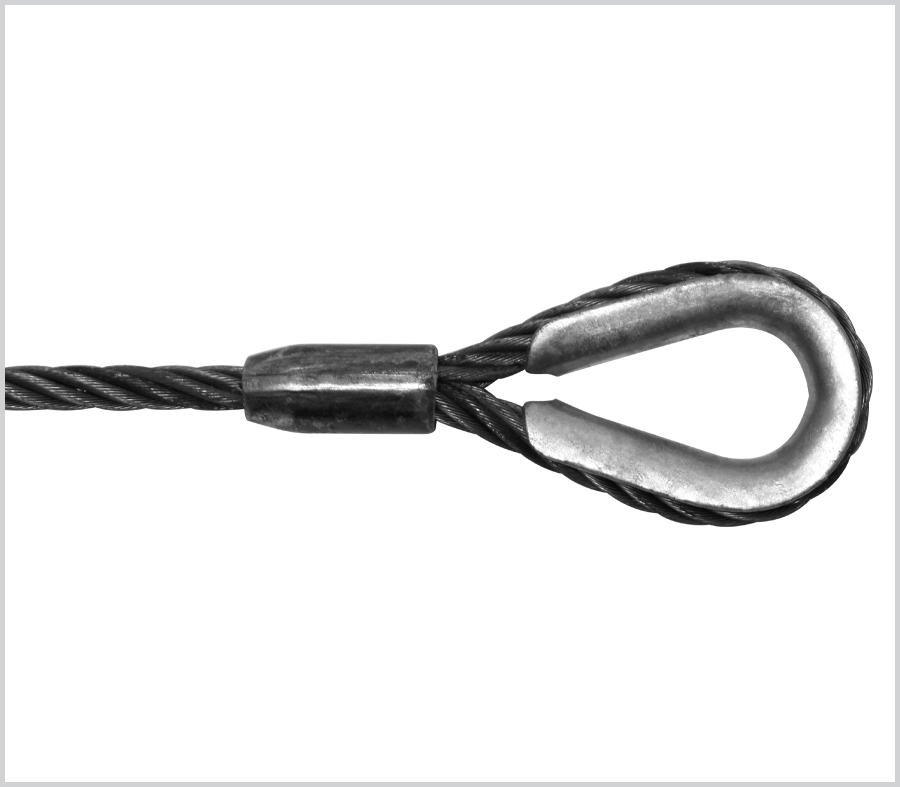

Flemished Thimbled Eye

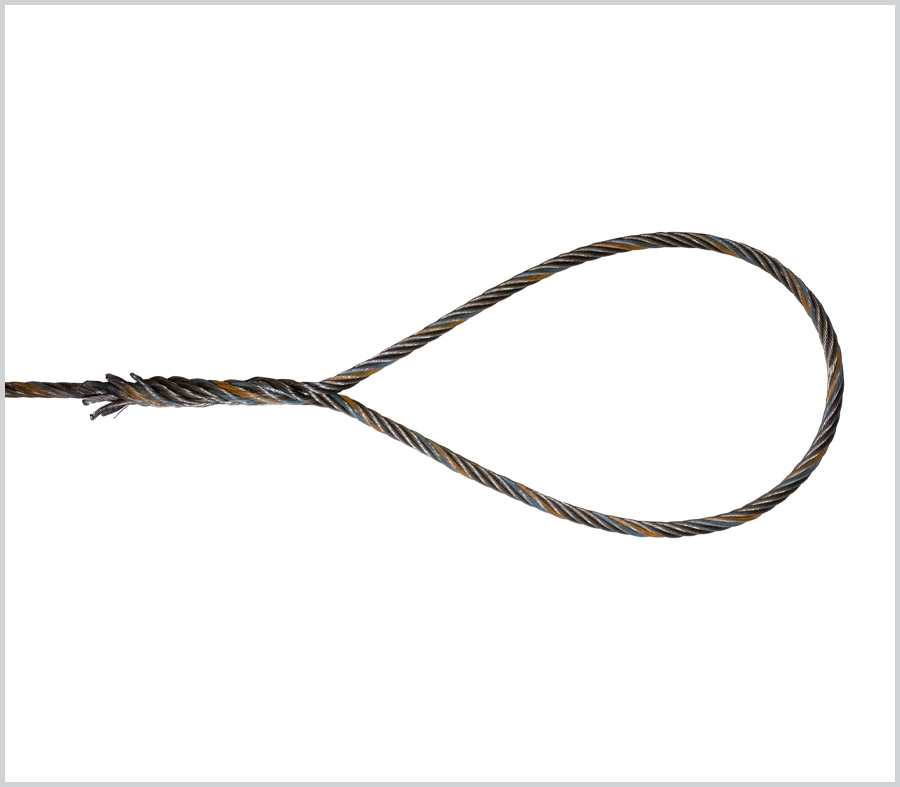

Hand Spliced Eye

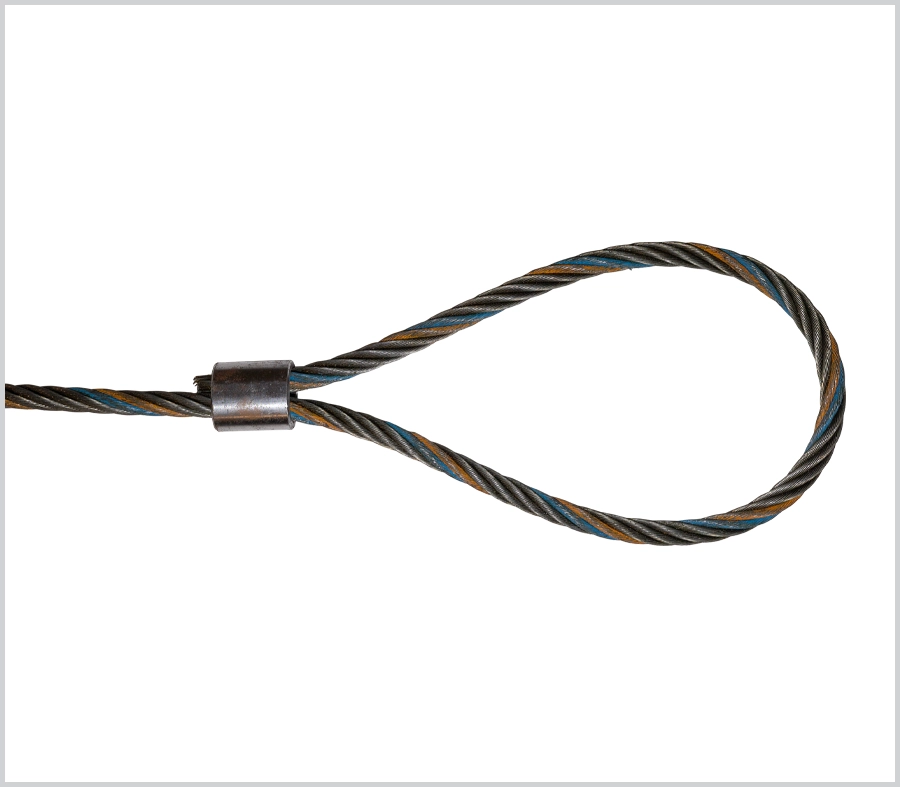

One Piece Turnback

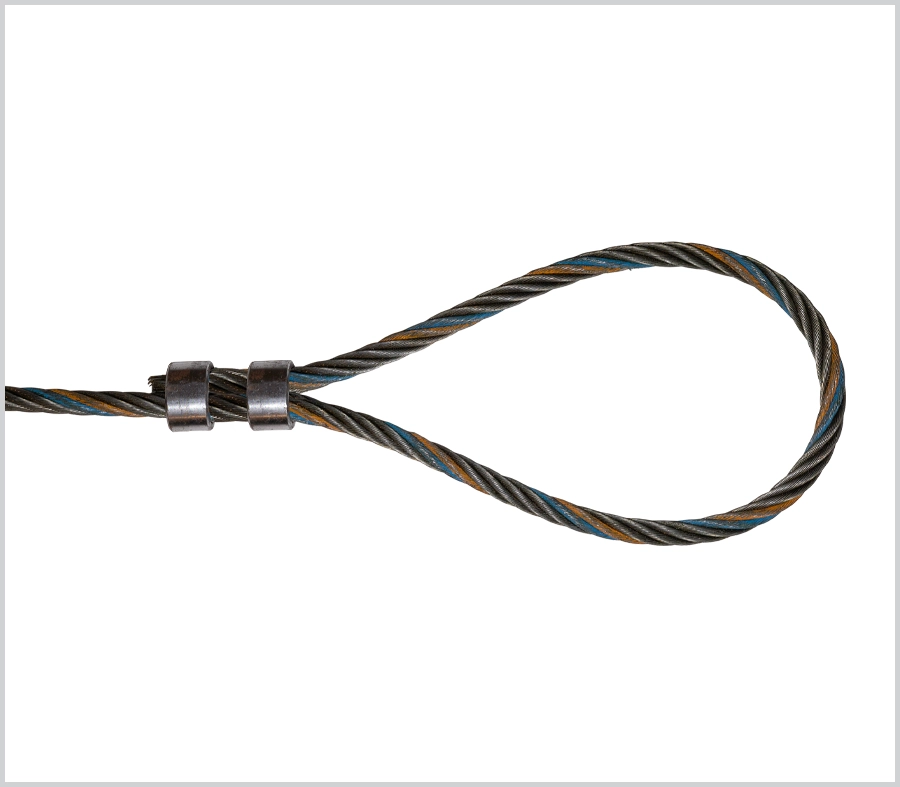

Two Piece Turnback
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
